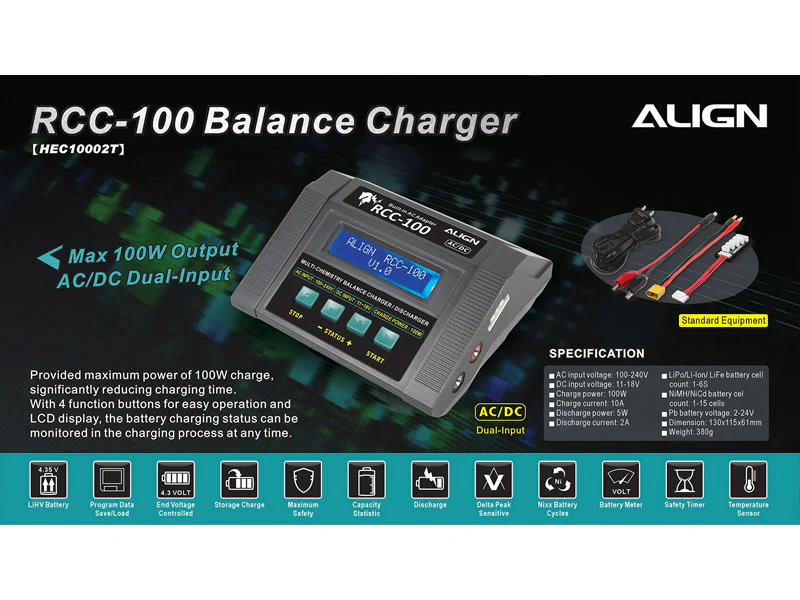

Provided maximum power of 100W charge, significantly reducing charging time. With 4 function buttons for easy operation and LCD display, the battery charging status can be monitored in the charging process at any time.

LiHV Battery

Program Data Save / Load

End Voltage Controlled

Storage Charge

Maximum Safety

Capacity Statistic

Discharge

Delta Peak Sensitive

Nixx Battery Cycles

Battery Meter

Safety Timer

Temperature Sensor

NOTE:

1.Do not leave the charger is operating unattended as it may cause a fire.

2.If the battery becomes hot while high current discharging or flying, please do not charge the battery immediately. Wait to cool down(about 20 mins), then inspect to recharge. If against follow the original factory using rules, possibly cause the battery to inflate or any dangerous accident happens.

Specification:

AC input voltage: 100-240V

DC input voltage: 11-18V

Charge power: Max. 100W

Charge current: 10A

Discharge power: Max. 5W

Discharge current: 2A

LiPo/Li-lon/ Life battery cell count: 1-6S

NiMH/NiCd battery cell count: 1-15cells

Pb battery voltage: 2-24V

Dimension: 130x115x61mm

Weight: Approx. 380g

Accessories:

RCC-100 Balance Charger x 1

RCC-100 Power Cord x 1

RCC-100 Car Battery Charger Cable x 1

RCC-100 XT60 Male Wire Set x 1
