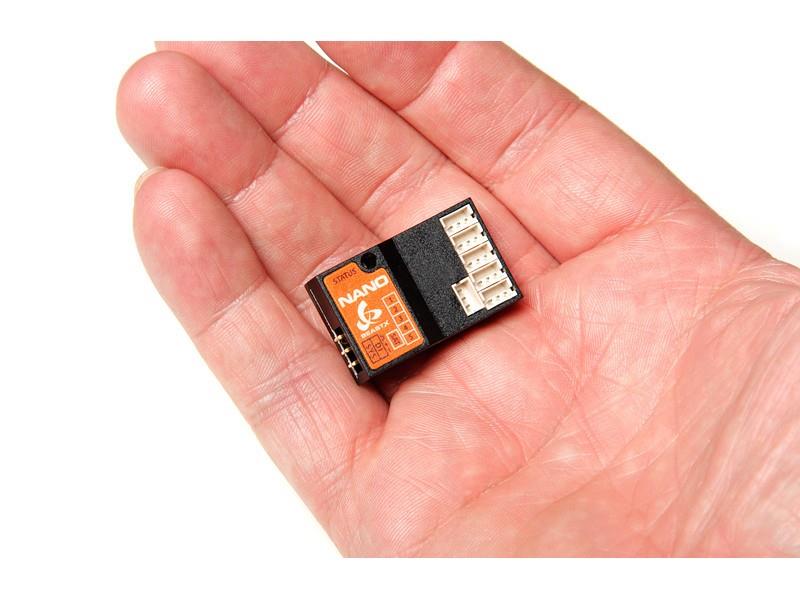

The NANOBEAST is a control unit for small and smallest RC model helicopters without auxiliary rotor level. The integrated gyroscopic elements stabilize the helicopter as much as possible so that it follows only the control commands of the pilot. The steering feel can be adjusted from tame to extremely agile. Thus, the model meets almost all requirements of pilots, no matter if beginner or 3D professional. Through a paid firmware upgrade, the system can be extended to "ProEdition".

This offers additional functions such as the AttitudeControl for position stabilization and rescue of the model in unsafe attitude, as well as a bank switching, which allows to switch between different parameter sets in flight.

For basic setting and tuning of the system a computer (Windows / mac), a smartphone or tablet (iOS / Android) with Bluetooth LE is required. Depending on the technology used, you will still need a USB2SYS (for computer) or BLE2SYS (for smartphone / tablet) interface.

This is not included and must be purchased separately! The configuration then takes place via the StudioX software, which is offered for free download.

Supported Receiver

Types / Transmission Protocols • SRXL: JR® XBus (Mode B), Multiplex® SRXL (V1 + V2), Jeti® UDI, Graupner / SJ® HOTT SUMD, Spectrum® SRXL

• Futaba® SBUS

• Single Satellite (Spektrum® DSM2 / DSMX , JR® RJ-01 DMSS)

• Jeti® EXBUS

• ALIGN / FlySky iBus

• PPM sum signal (SPPM)

Technical specifications

Receiver connections: Spektrum® / JR® single satellite, sum signal connector for Graupner® HOTT, Futaba® SBus, Jeti® exBus, FlySky® iBus, FrSky® SRXL, Multiplex® SRXL, JR® XBus (B), Spectrum® SRXL, Align® iBus, SPPM total signal

Input voltage: 4.8V to 6.0V

Recommended helicopter size: 180's - 250's Electroheli

Dimensions: 32x20x10mm

Weight: 5.8g

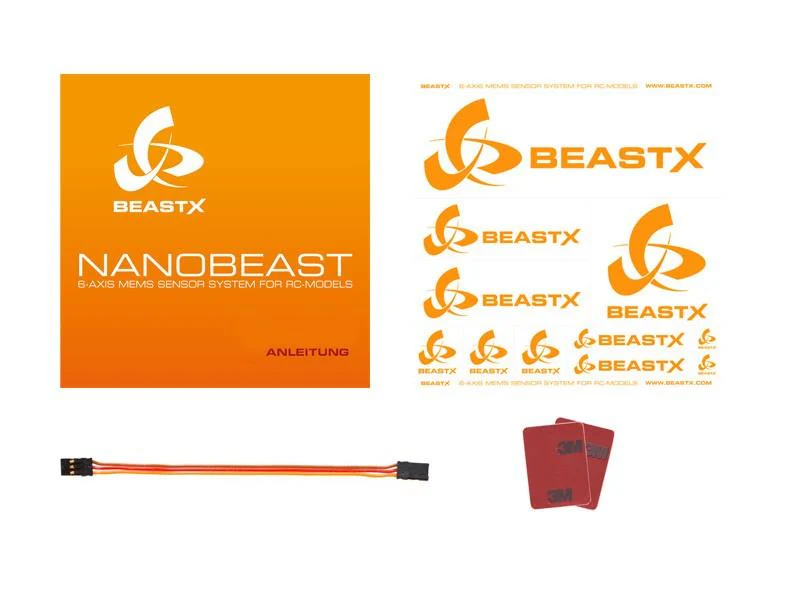

In the Box

• 1x NANOBEAST control unit

• 1x patch cable for

total signal receiver

• 2x adhesive pad • 1x manual

• 1x decal sheet
