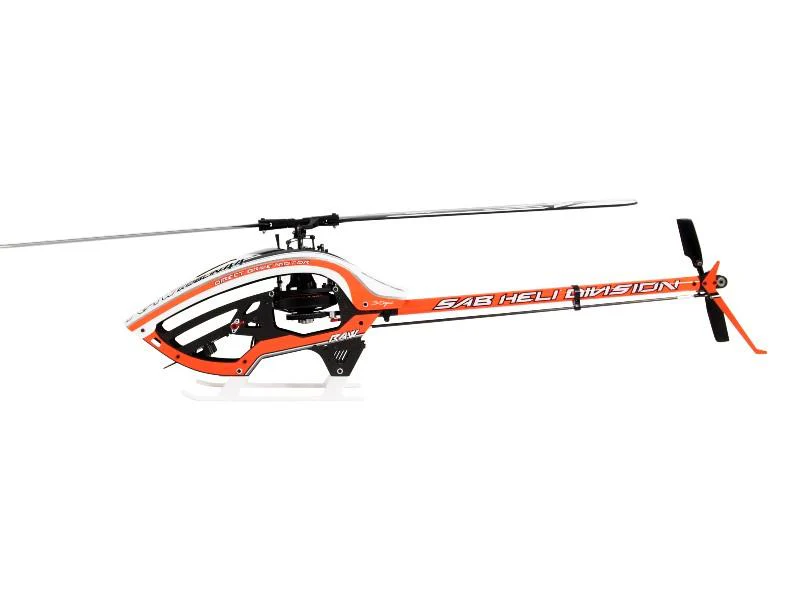

SAB Goblin RAW 580 White/Orange : SG585

• The new RAW 580 use the same module from Kraken 580.
• Incredible strong Power train enclosed in aluminum case,
• Ultra light 7075 aluminum alloy highly adjustable rotor head with super simple Tail group,
• Aluminum Boom 30 mm
• Easy maintenance
• Main blades up to 600mm.

TECHNICAL SPECIFICATION

• AIRFRAME weight: 1740gr ( with S580 blades, no battery, no electronics )
• Main blade length: 550mm to 600mm
• Tail blade length: 95 to 105 mm
• Main rotor diameter: 1290 mm (with 580 mm blades included)
• Tail rotor diameter: 260 mm (with 95 mm tail blades included)
• Cyclic Servos: mini cyclic servo (torque over 8 Kg-cm). Kit includes servo mounts for mini-servos. Full size servo mounts available separately.
• Tail Servo: standard size 40mm.
• Main Rotor ratio : 11.5 to 8.6 :1 ( 22T included: 9.4:1)
• Tail Rotor ratio : 5.3-4.9:1 ( 23T included: 4.9:1 )
• Typical motor : 4025 series, 6S 1000-1200 Kv, 12S 500-600 Kv. Minimum motor shaft length is 26mm (We recommend using a 6mm diameter motor shaft)
• Typical speed controller: 6S 120-140 A, 12S 100-130A
• Battery size: 6S 5000/5800 mAh, 12S 2600/3200 mAh.
