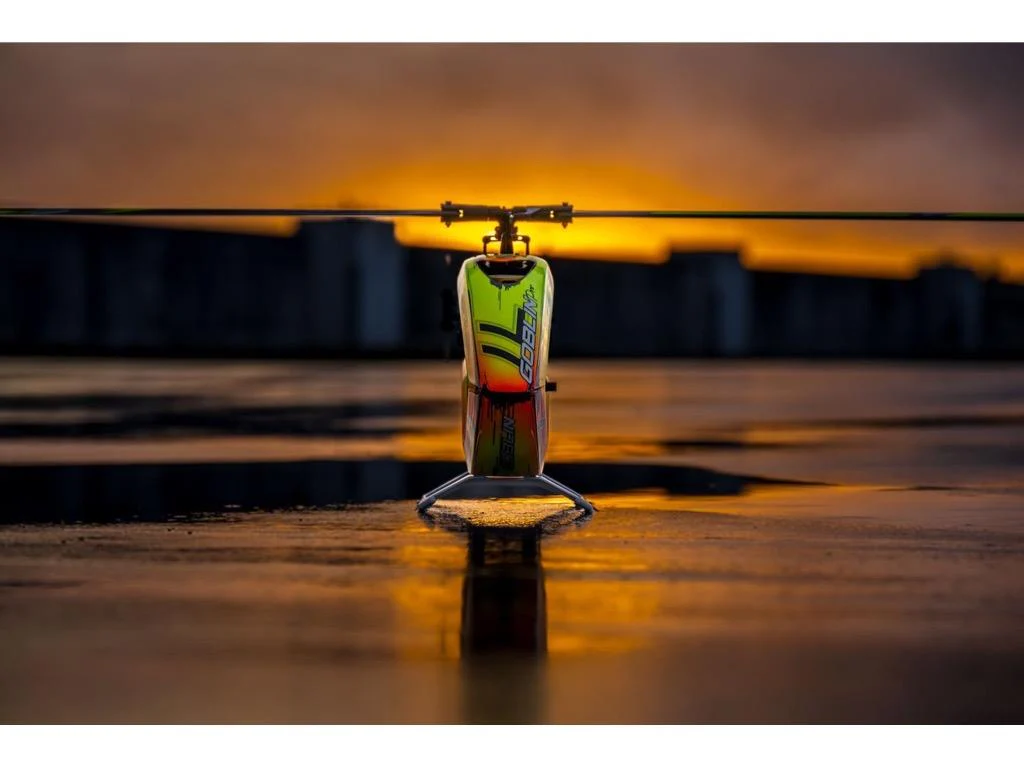

SAB iLGoblin PRO 420 - Yellow : SG427

SAB was the first to introduce the Goblin 420 with a Direct Drive motor, opening up new possibilities in this class.

Later, to maximise the power-to-weight ratio, SAB developed the belt-driven version: lighter, more powerful, and even more extreme.

Now, SAB raises the bar once again by combining technology and design.

Inspired by the iconic lines of the best-selling SG760, the new ilGOBLIN 420 brings the same stunning appeal to the 420 class.

Performance, style, innovation.

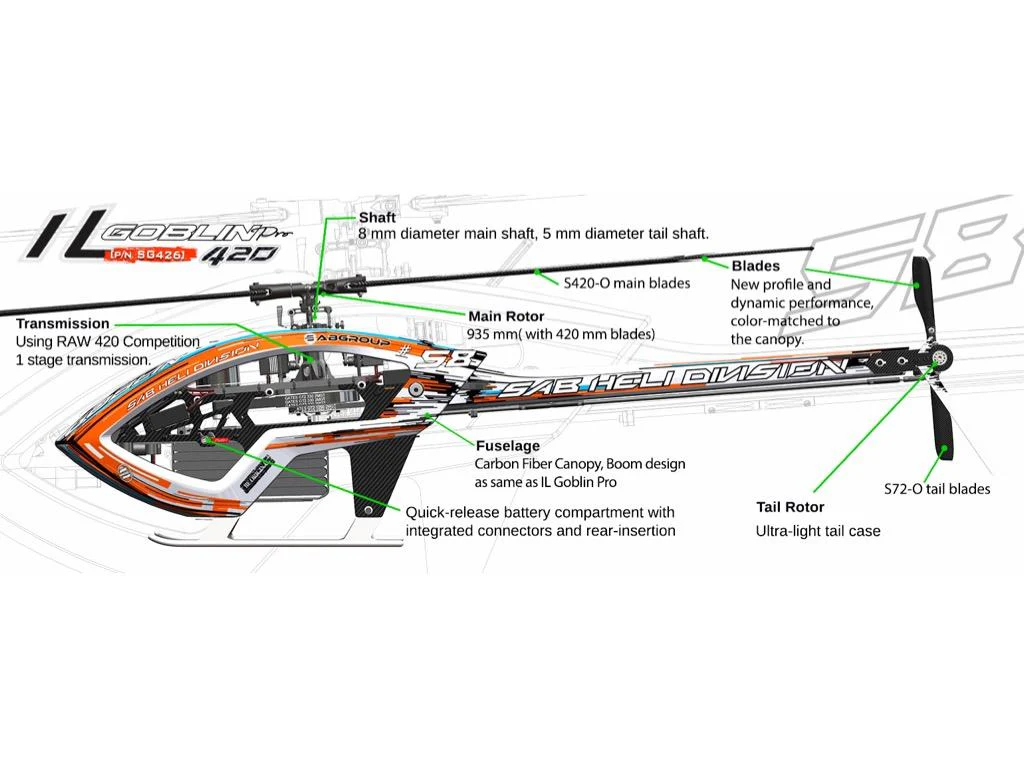

• Main rotor diameter 935mm (with 420mm blades)
• Main blade length 380 to 420mm
• Tail rotor diameter 194mm (with 72mm tail blades)
• Tail blade length 60 to 72mm
• Micro size cyclic servos (23mm)
• Mini size tail servo (35mm)
• Maximum battery size: 140x40x50mm (max)
• Recommended battery: 6s 2200/2700mAh
• Recommended motor: 3020 – 3215 – 3220
• Recommended motor KV: 900-1000 KV
• Recommended battery weight: 350-420 grams
• Recommended ESC: 60A (70-80A is required only for hard 3D flight with temperatures above 30°C)
• Tail rotor ratio 4:1
• 8mm main shaft
• 5mm tail shaft

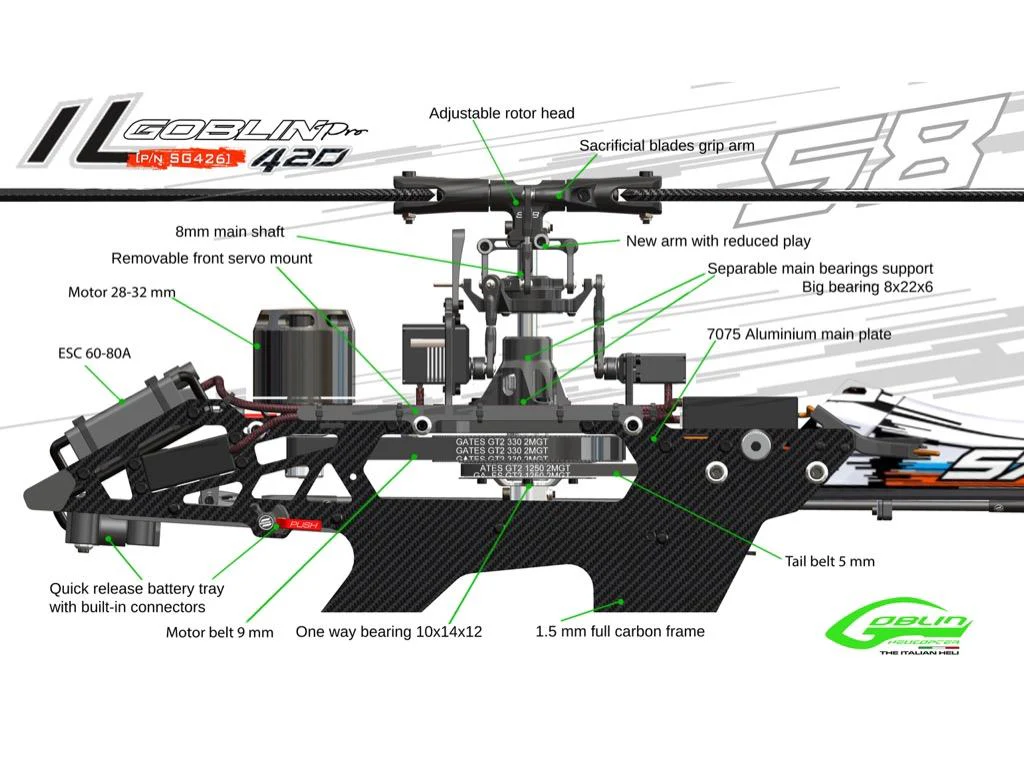

  ilGoblin 420 main features:

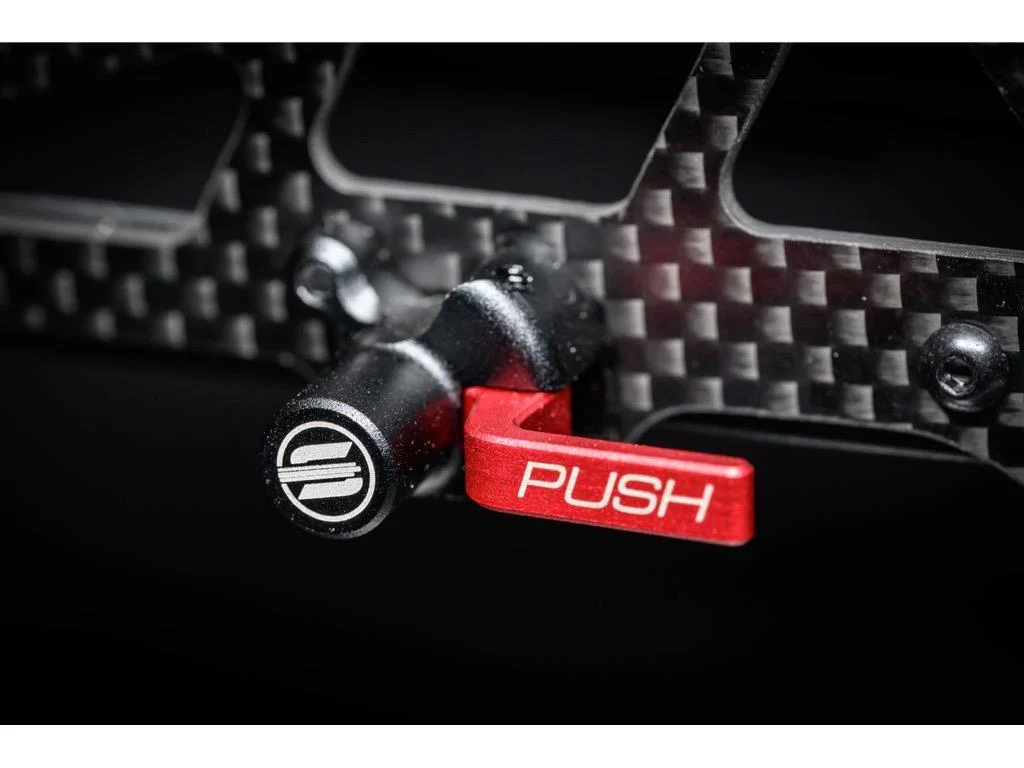

• Quick release battery tray with integrated connectors
• Zytel HTN resin blade grip arms (sacrificial)
• It is not necessary to remove the canopy to replace the batteries.
• Main ratio 1:5/6
• Tail ratio 4:1
