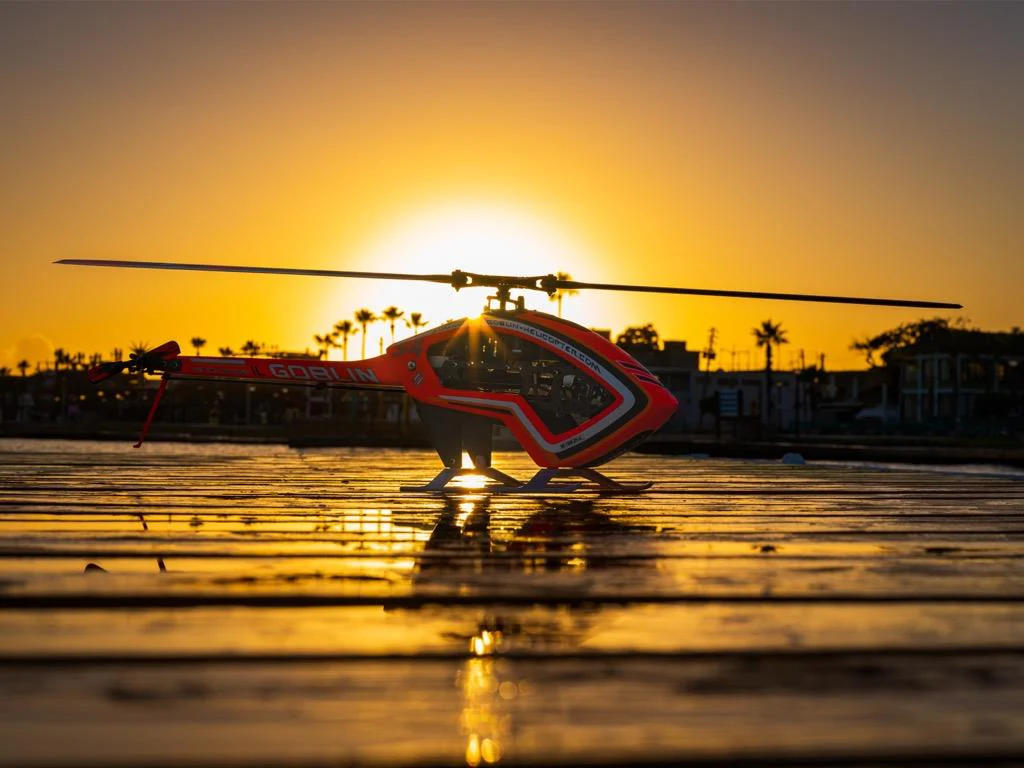

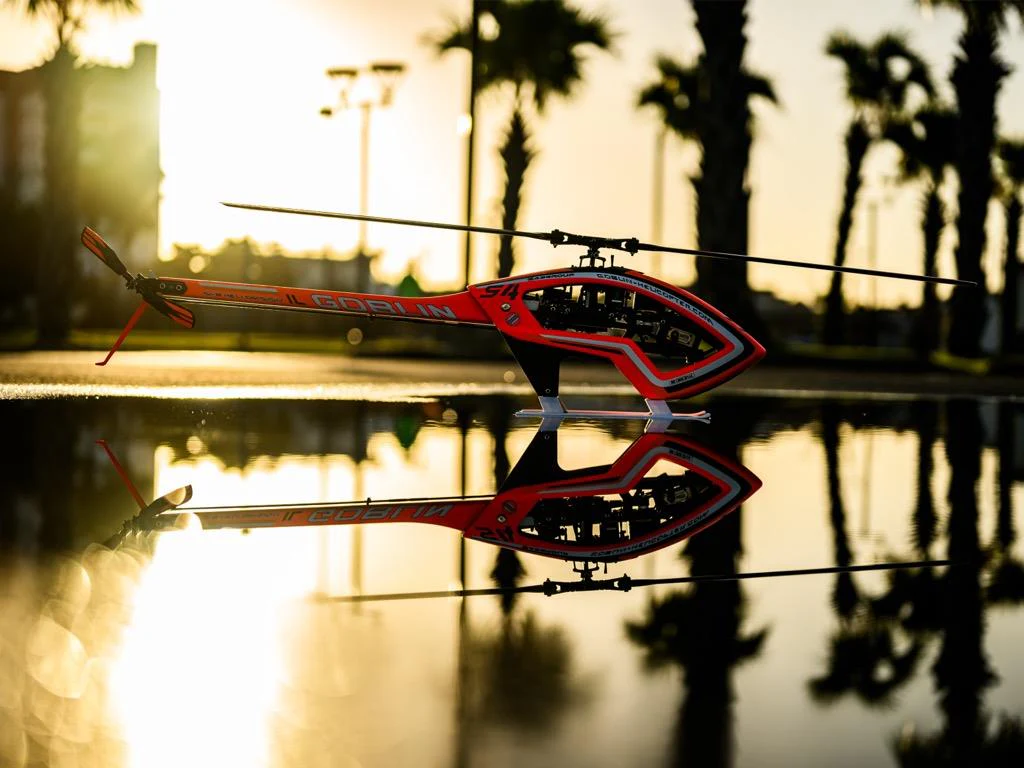

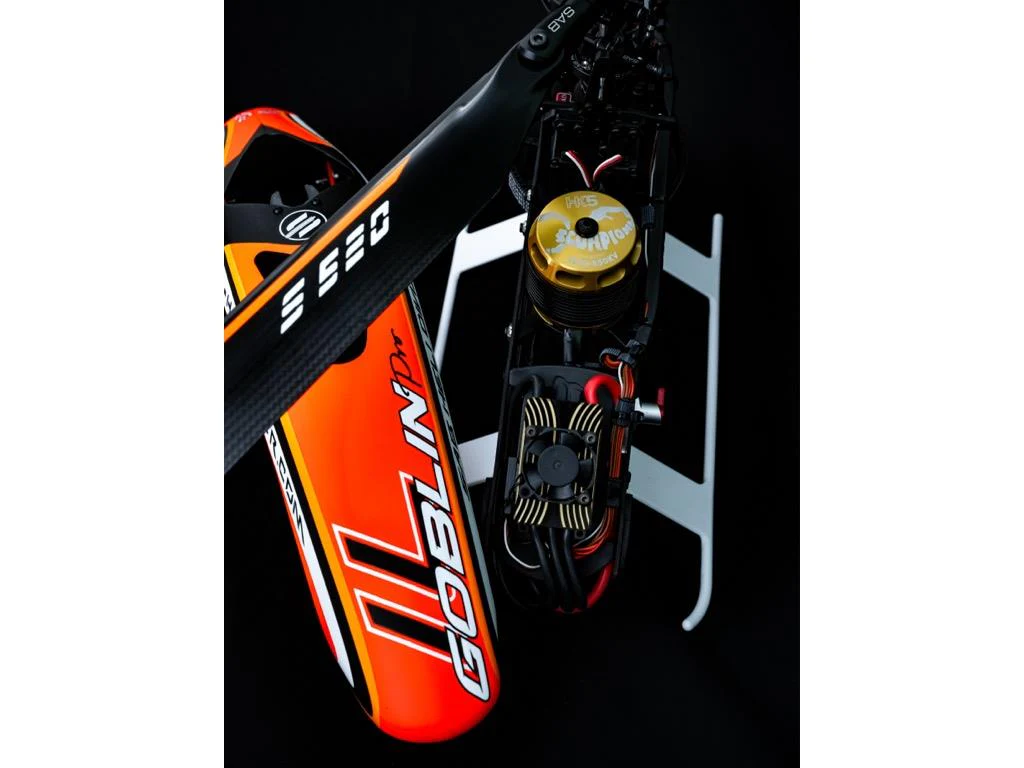

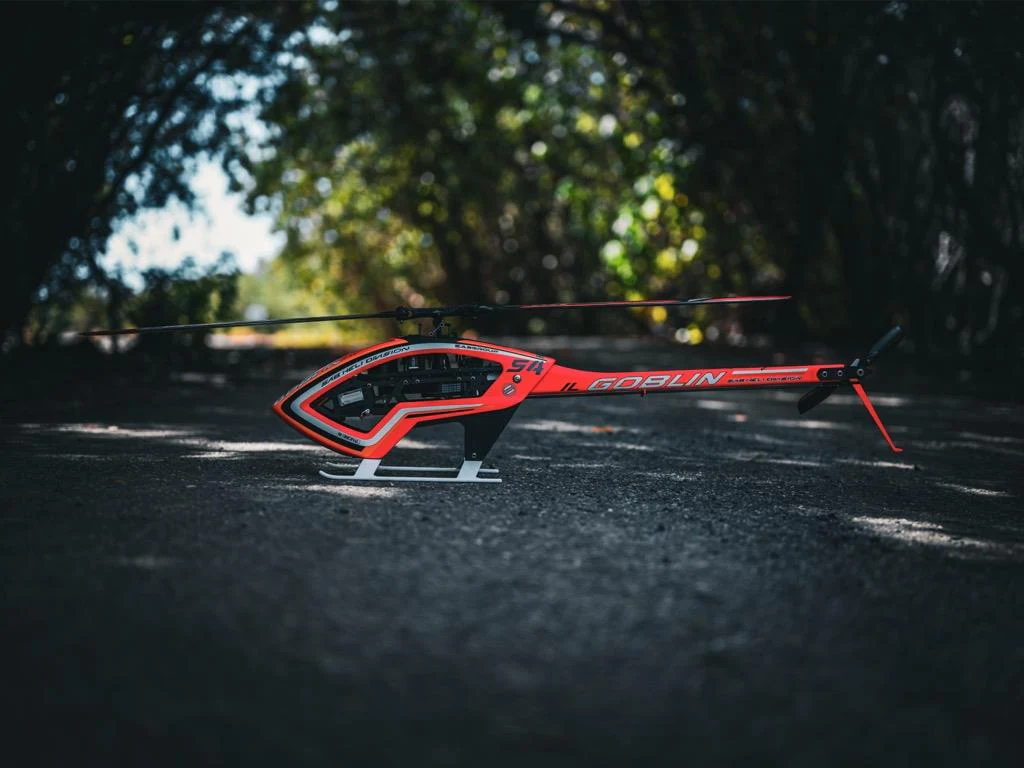

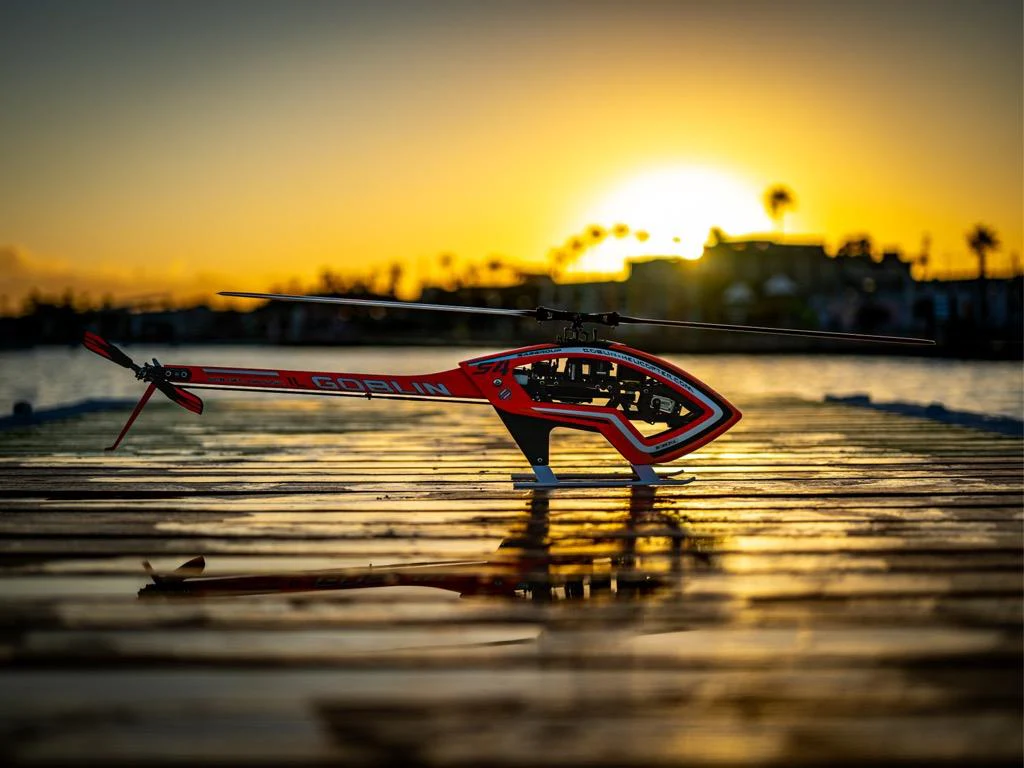

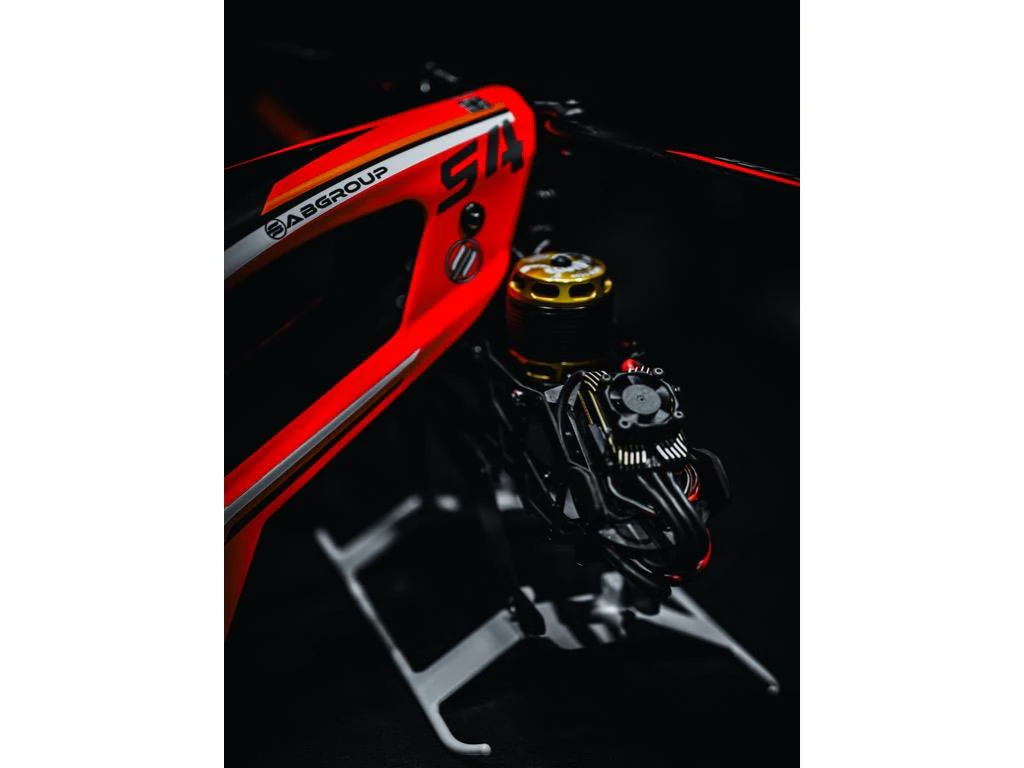

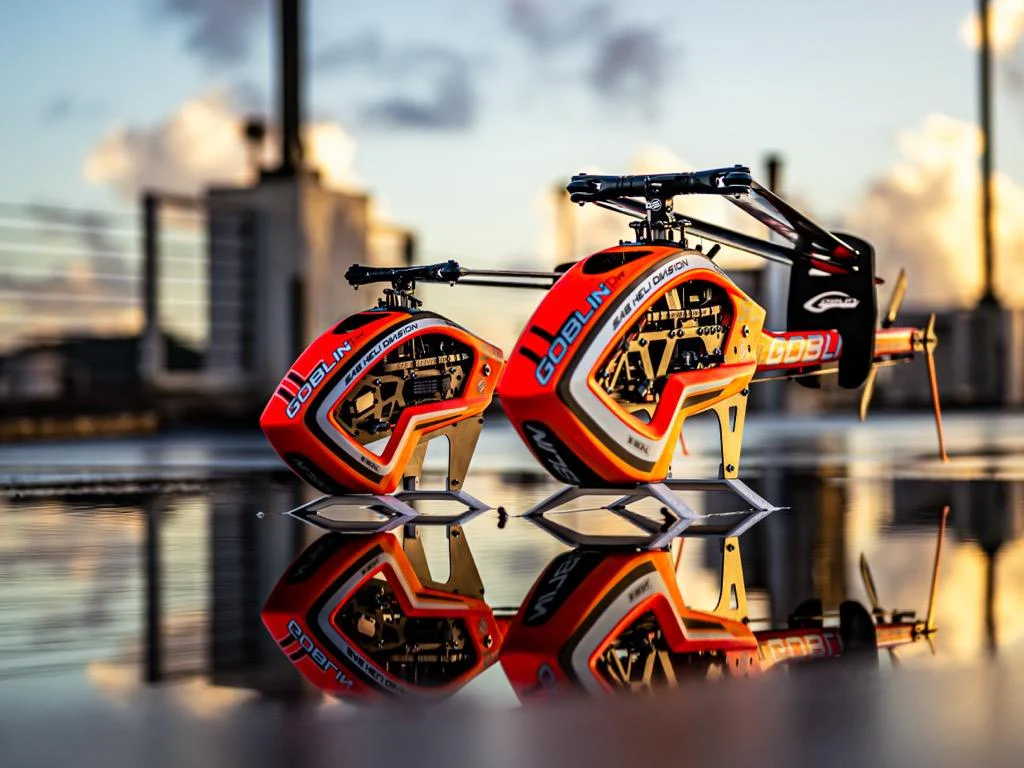

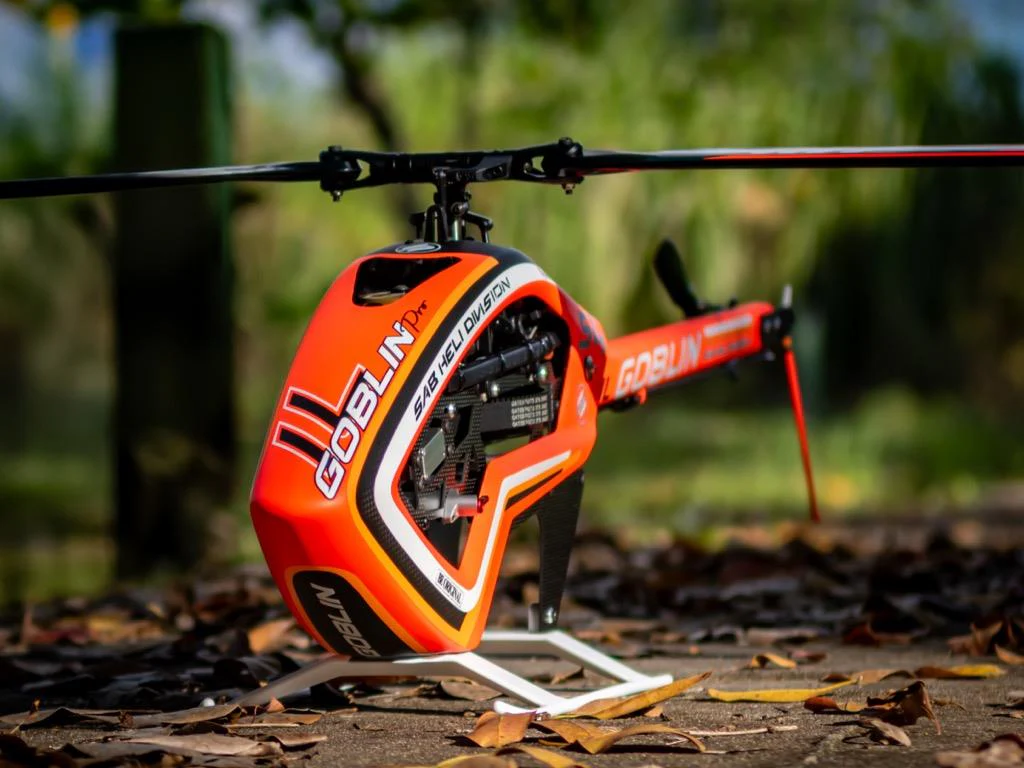

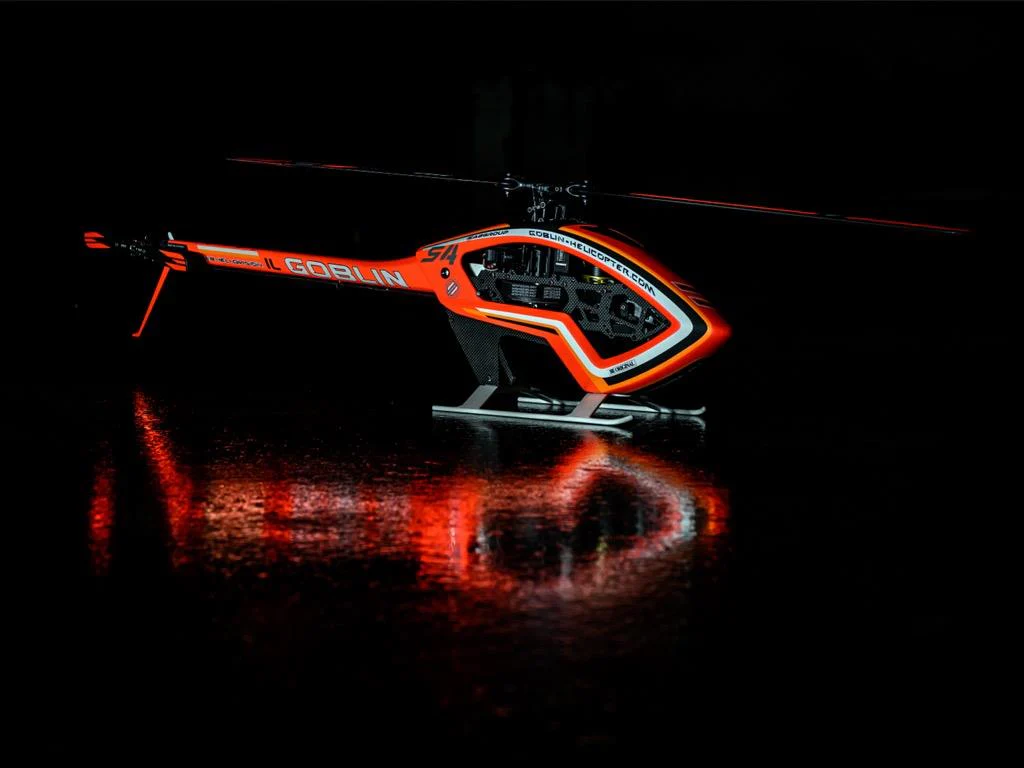

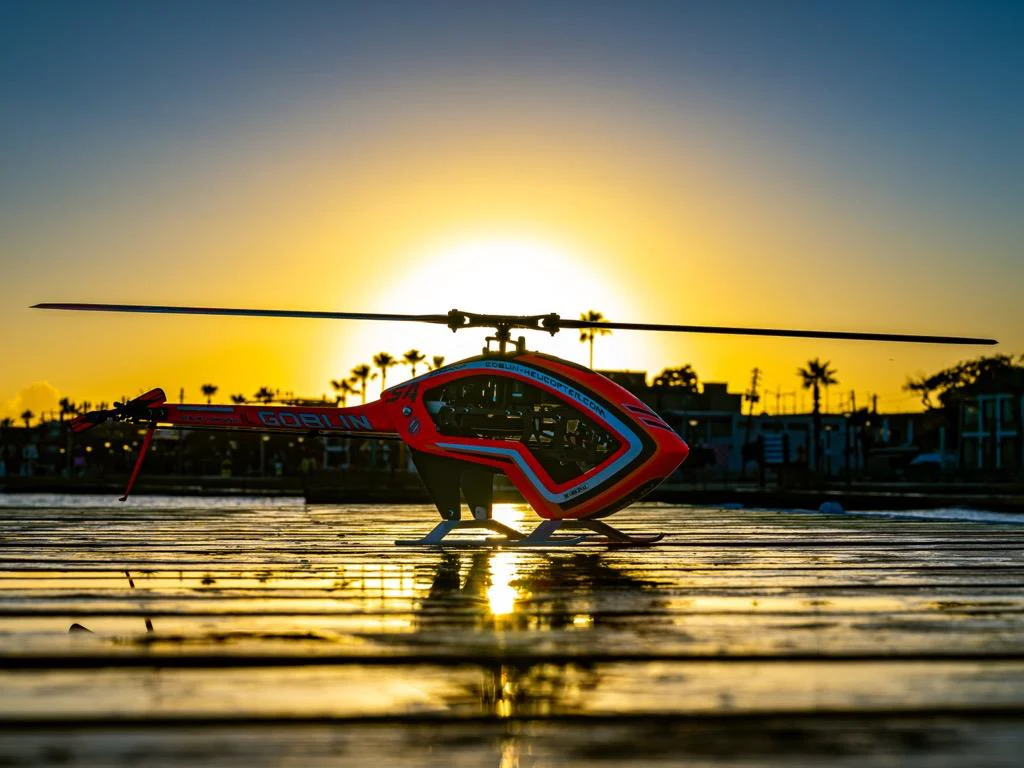

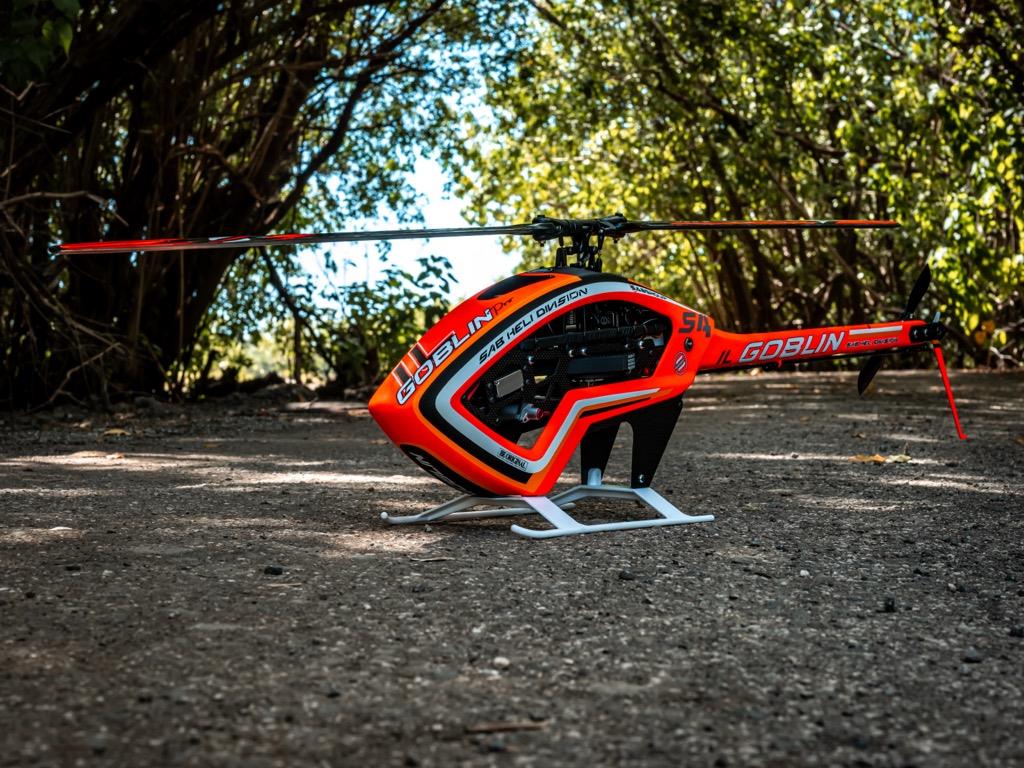

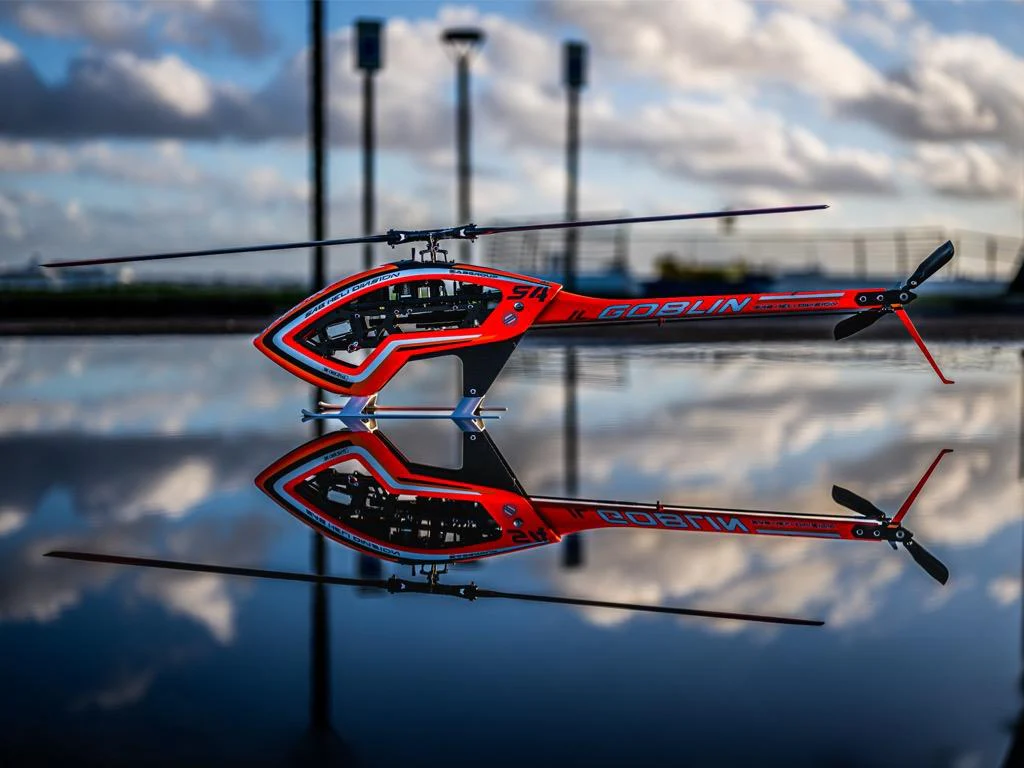

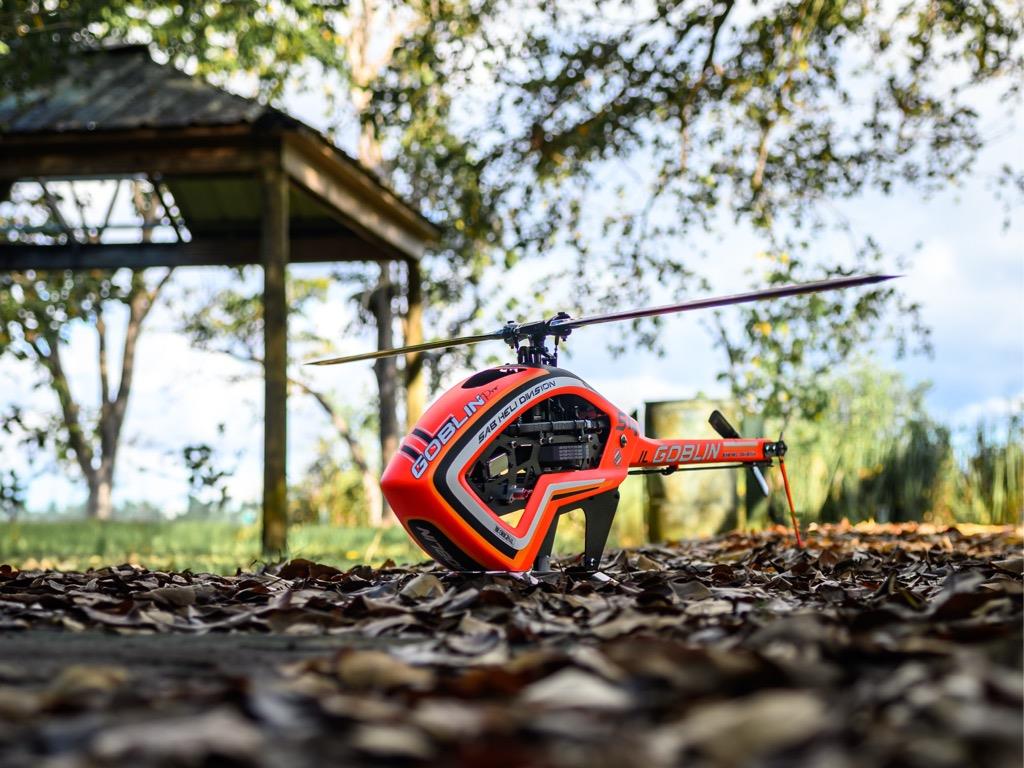

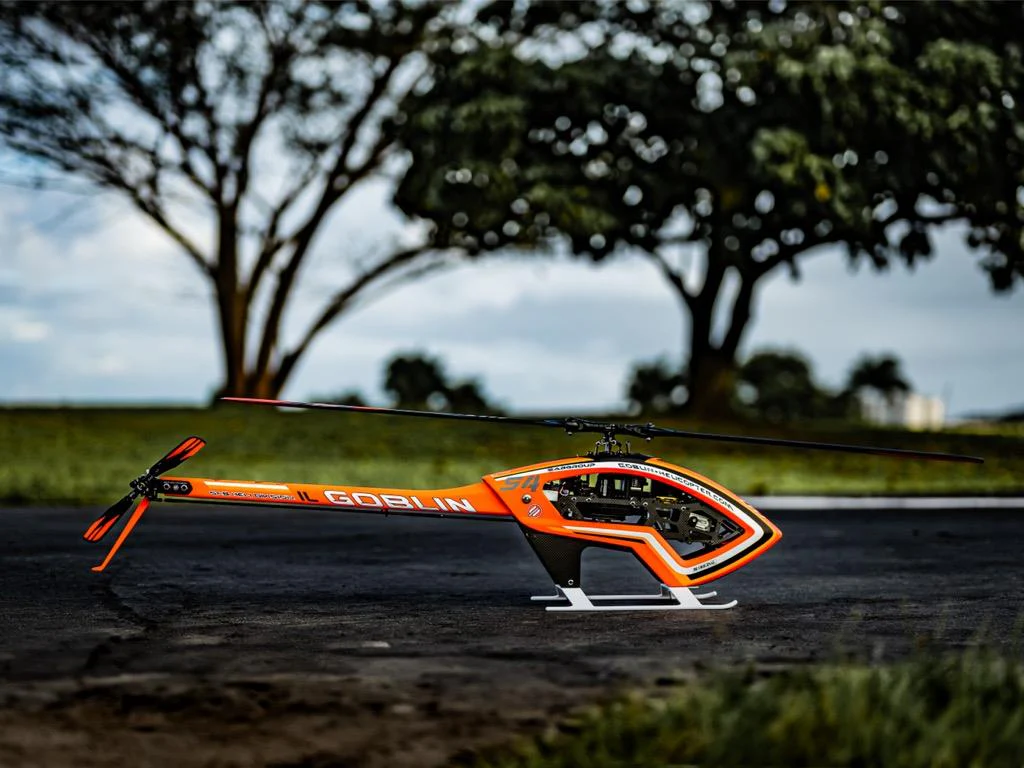

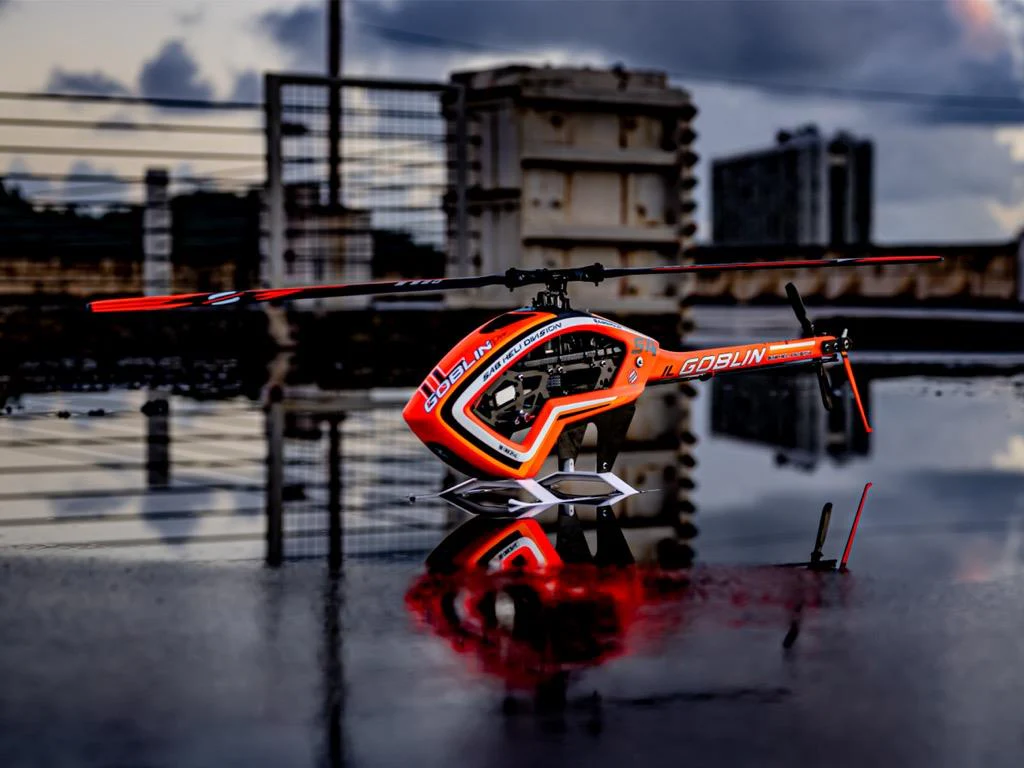

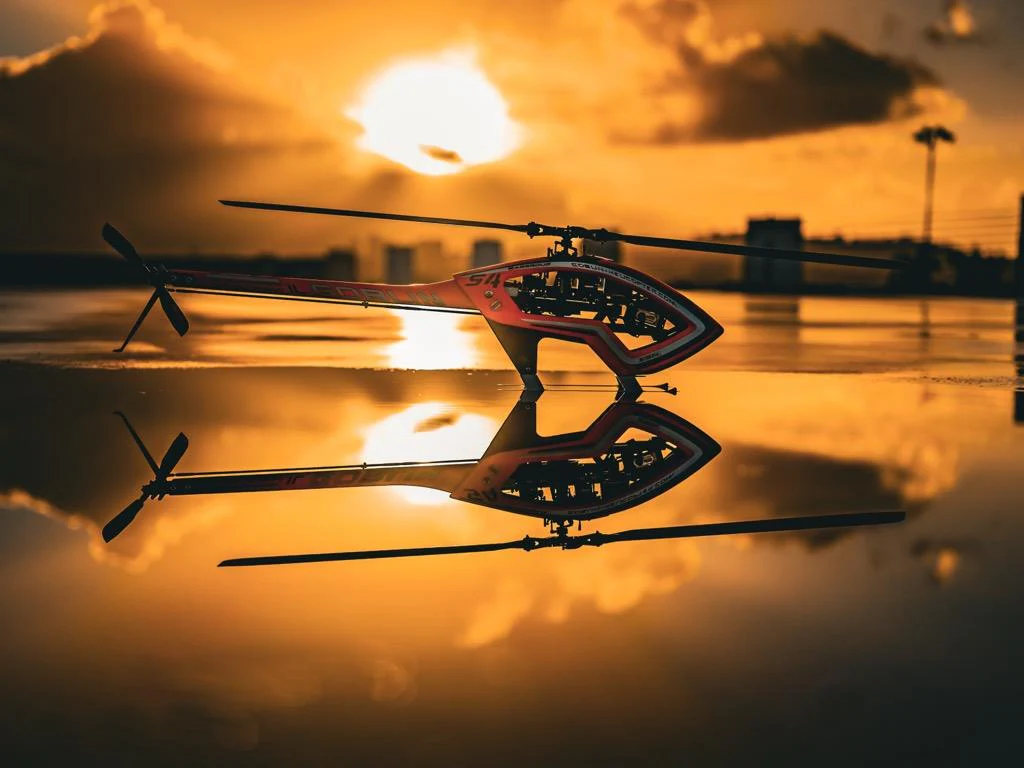

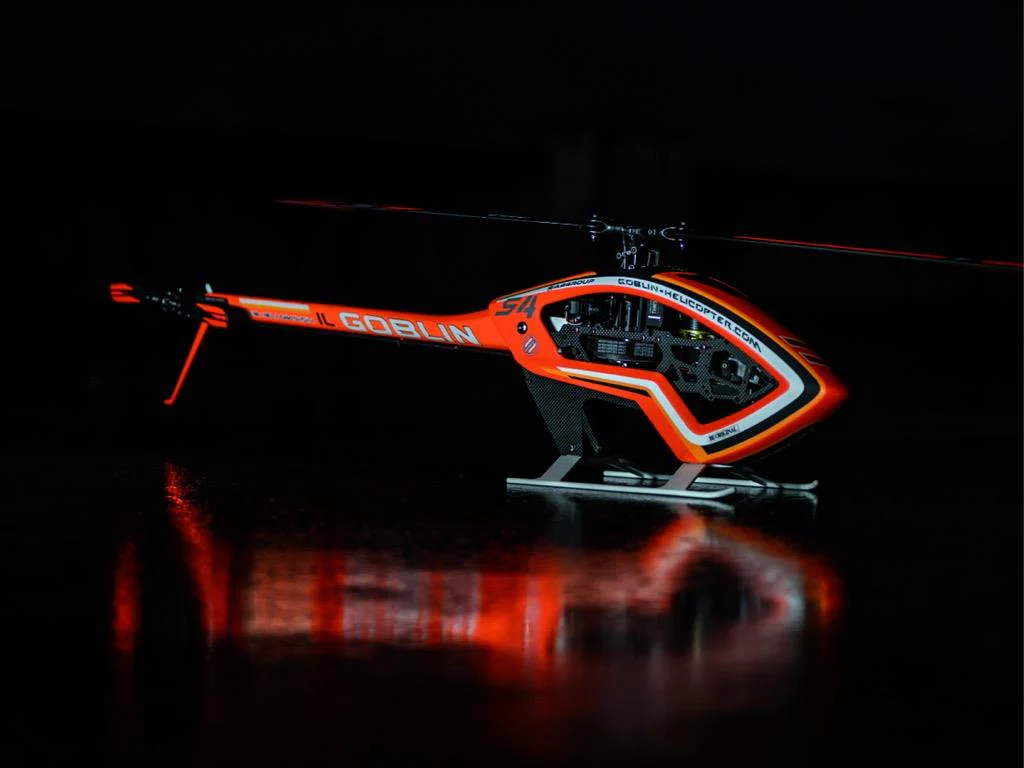

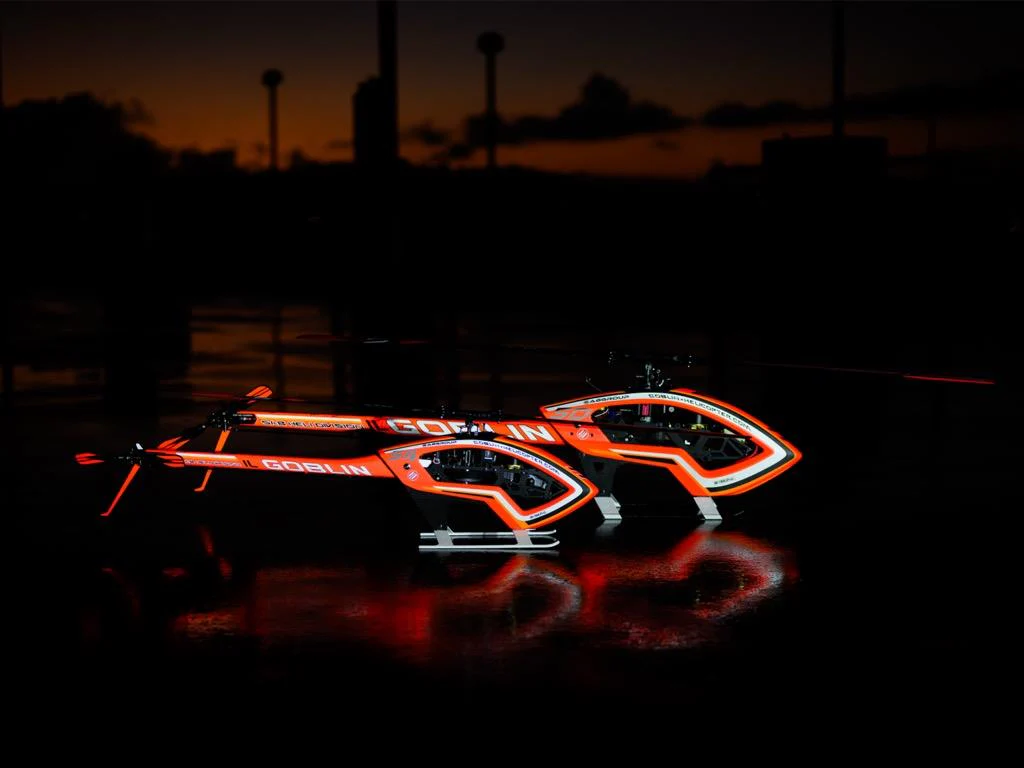

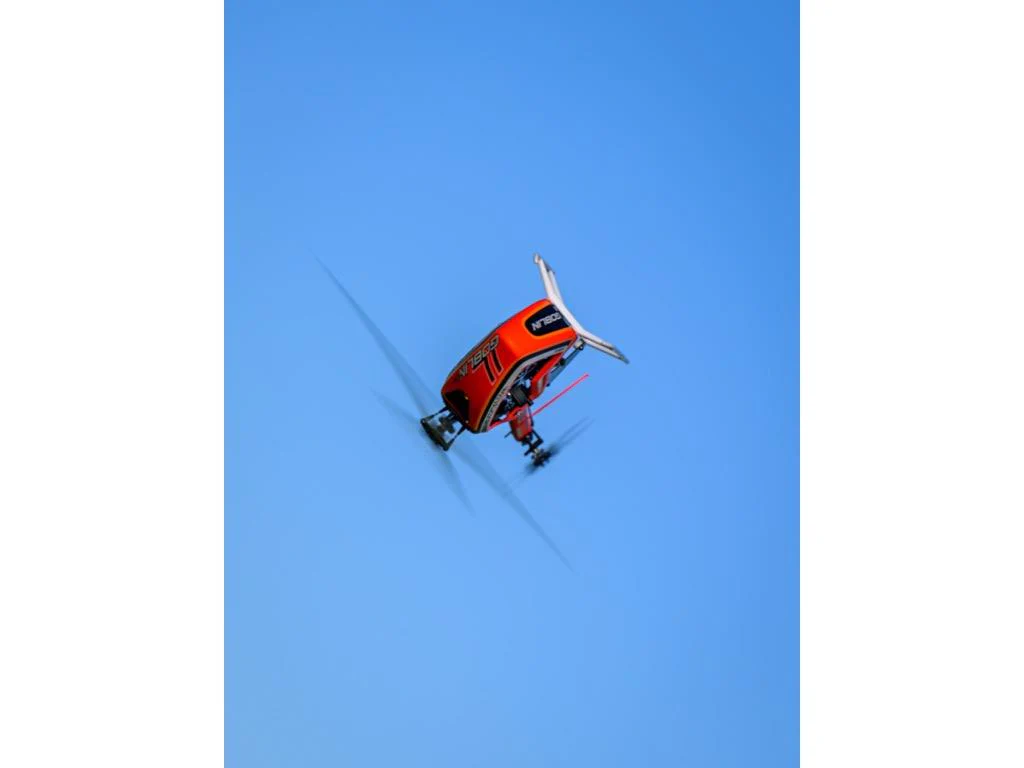

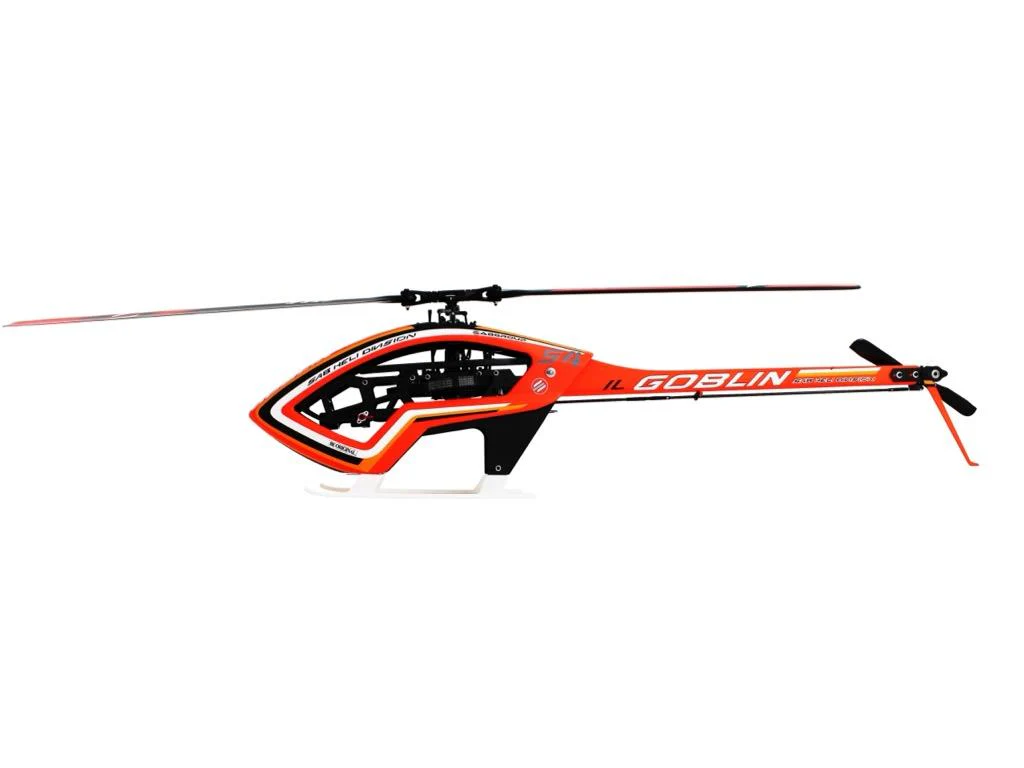

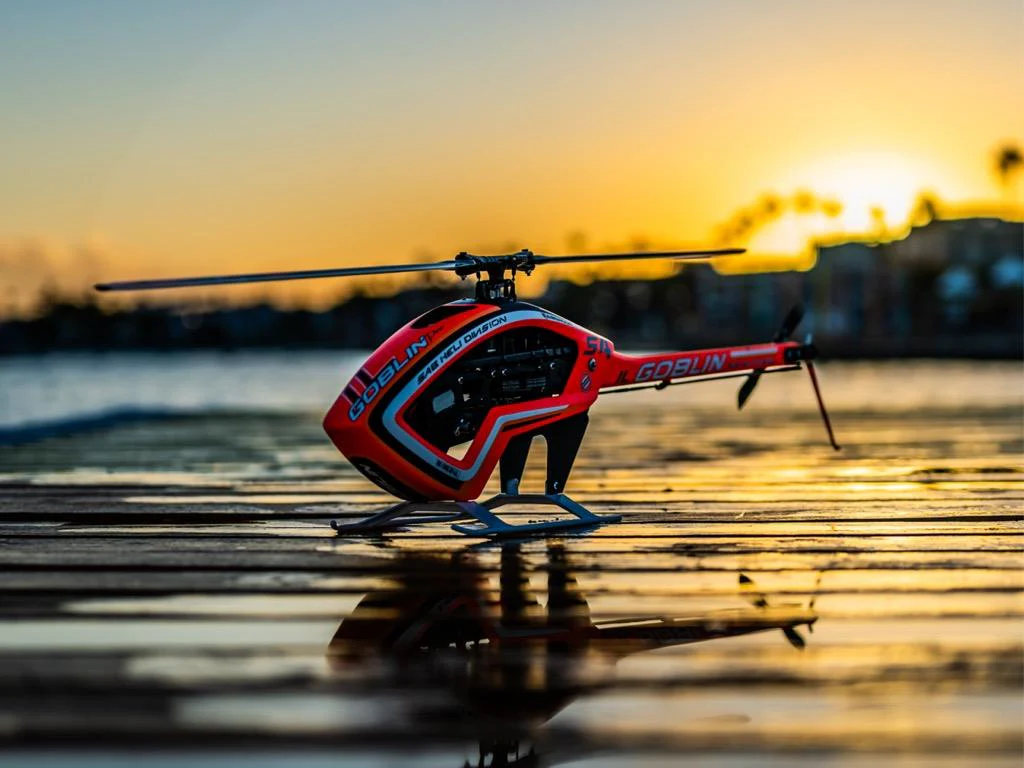

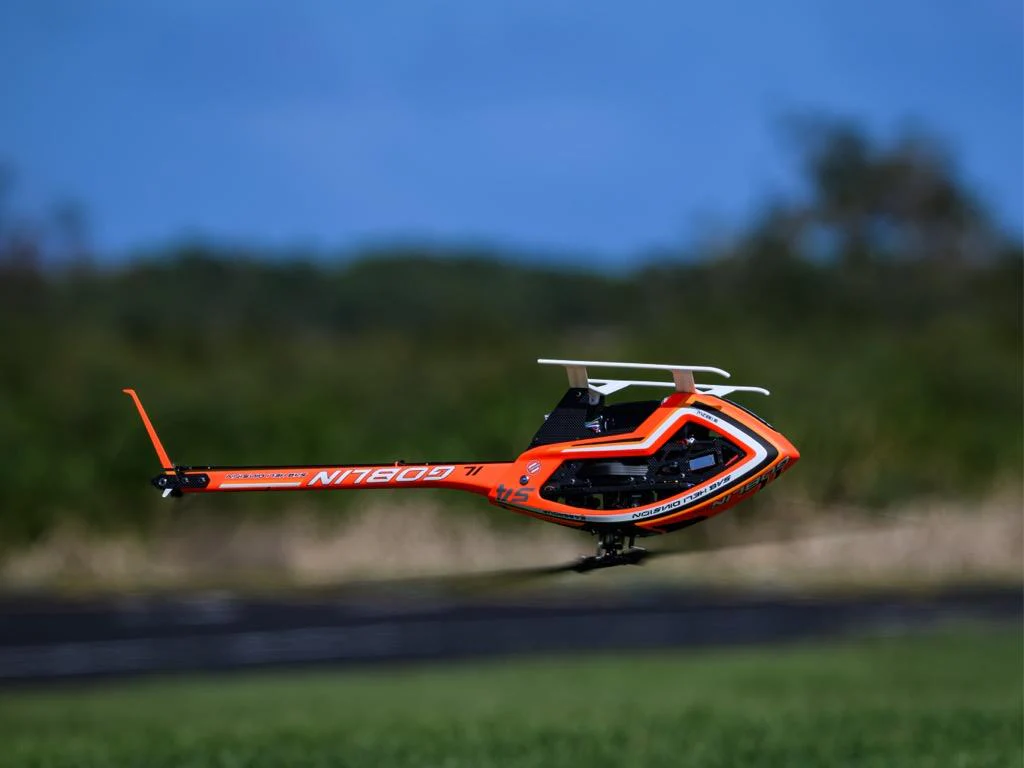

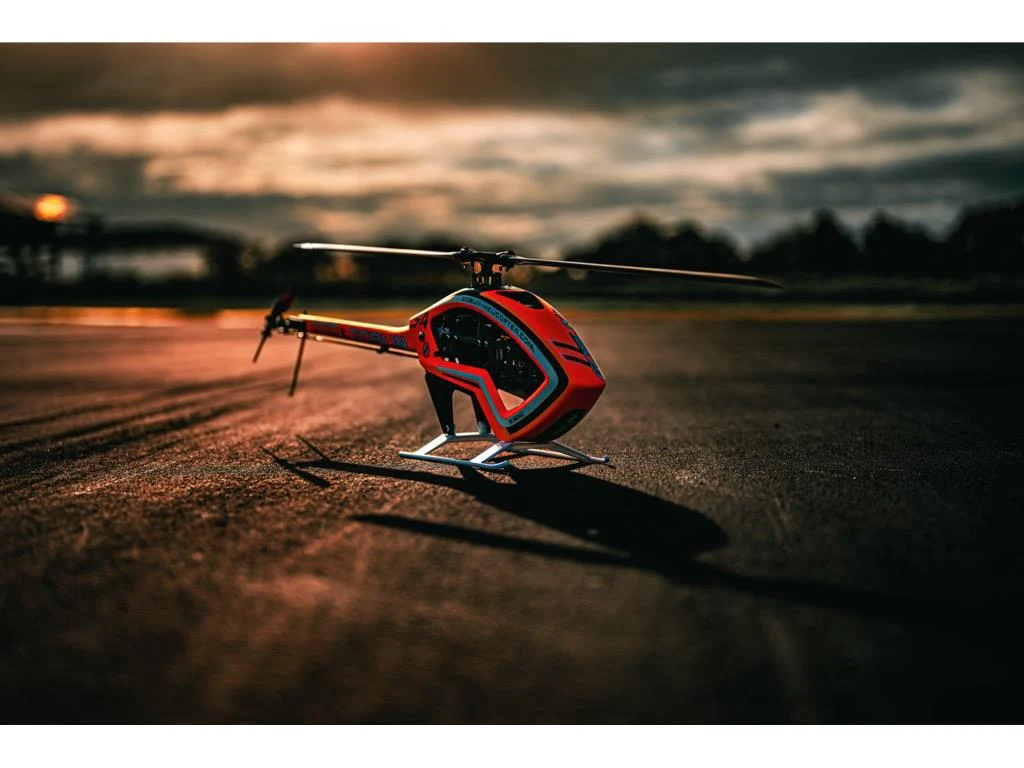

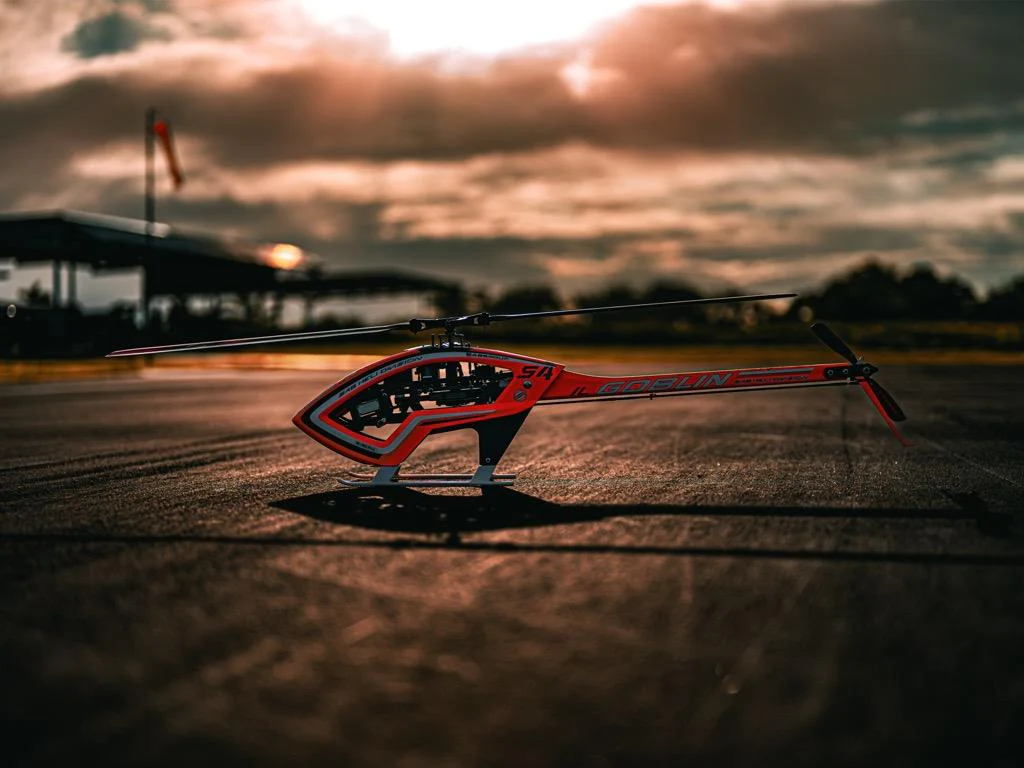

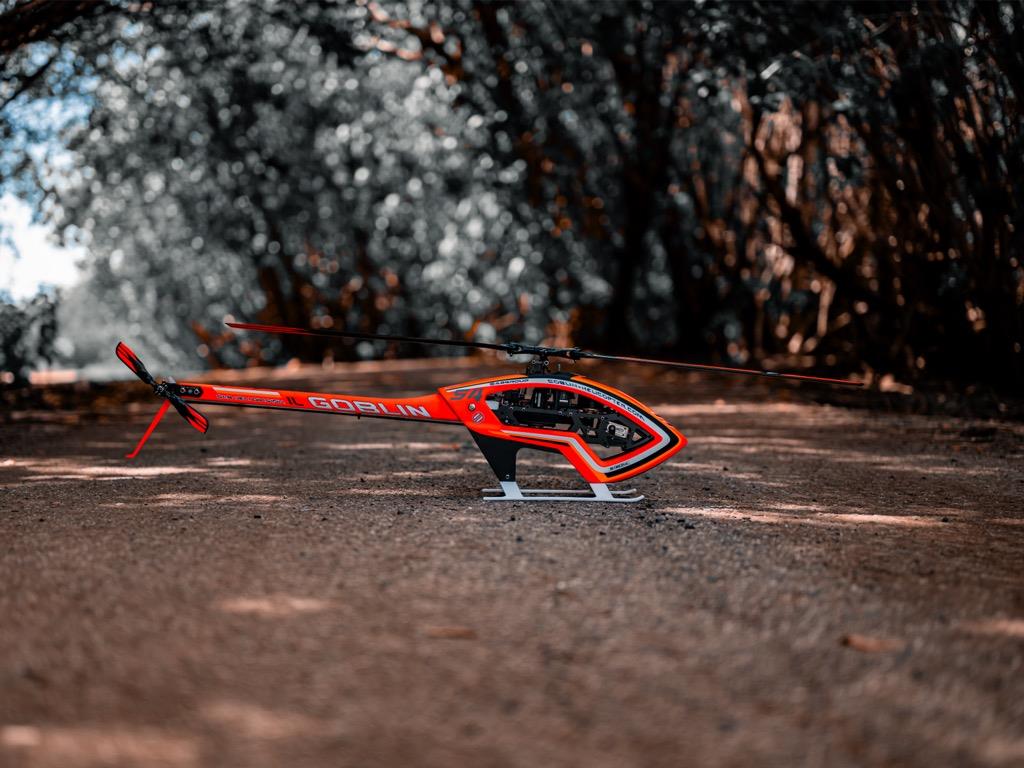

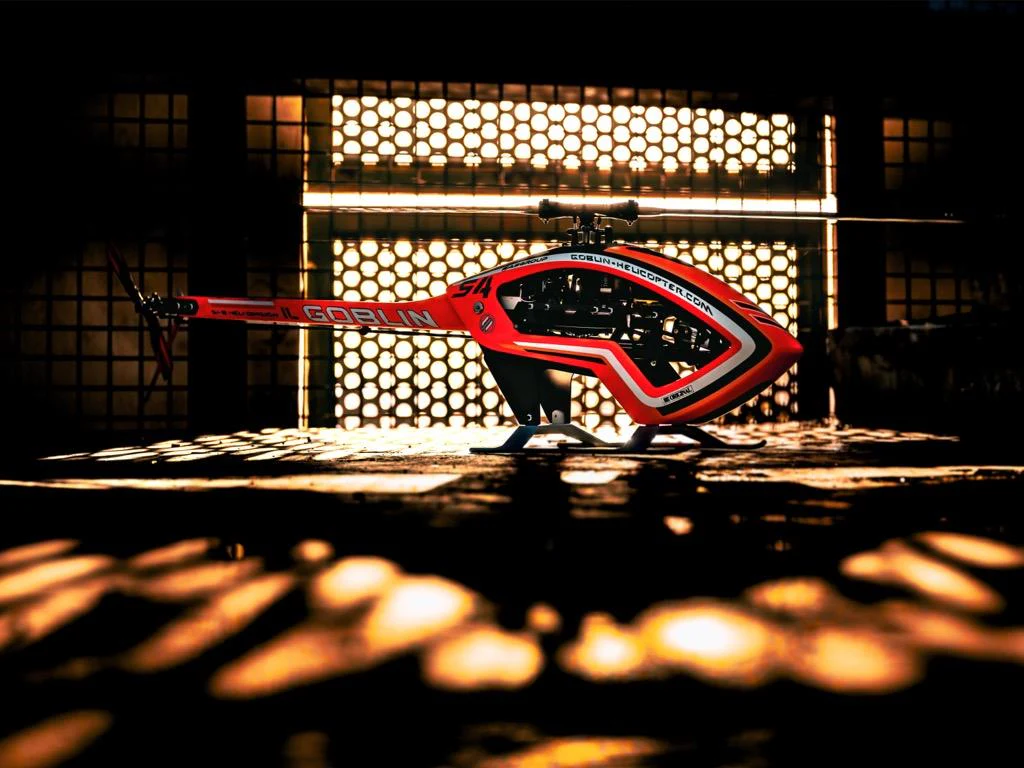

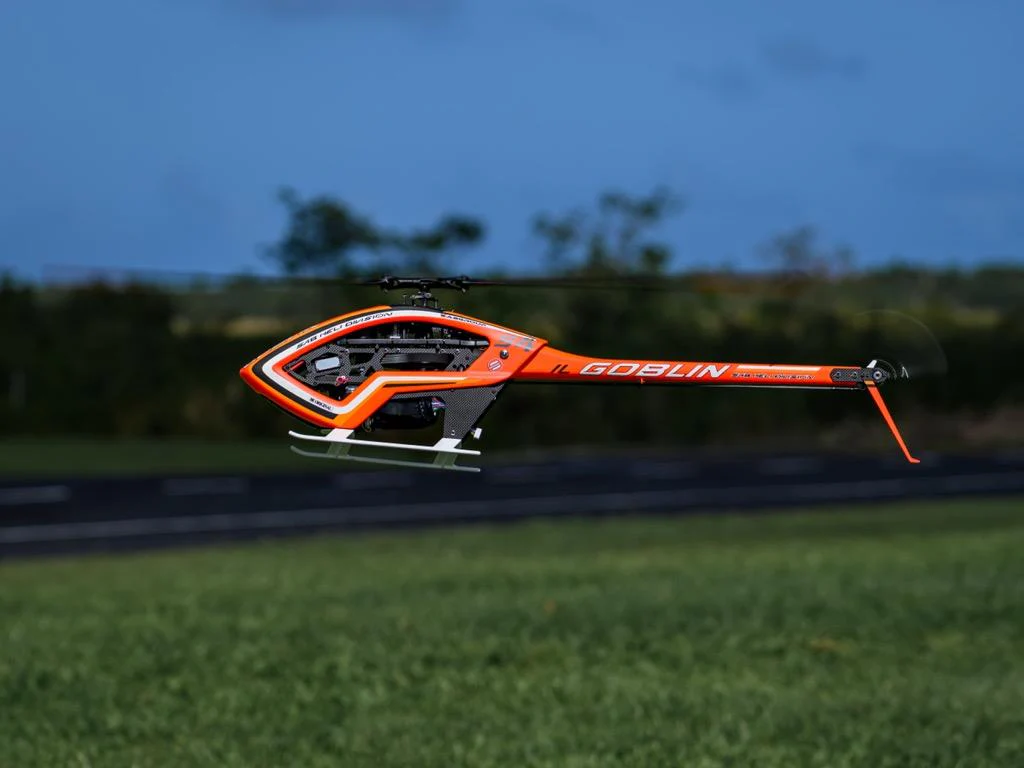

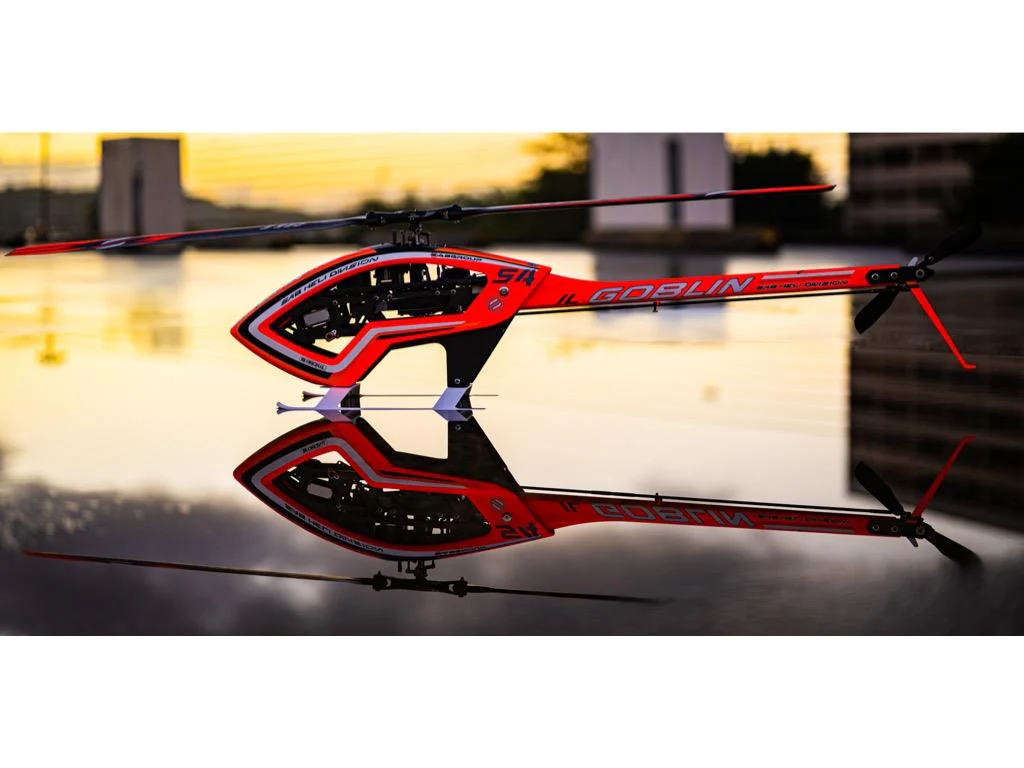

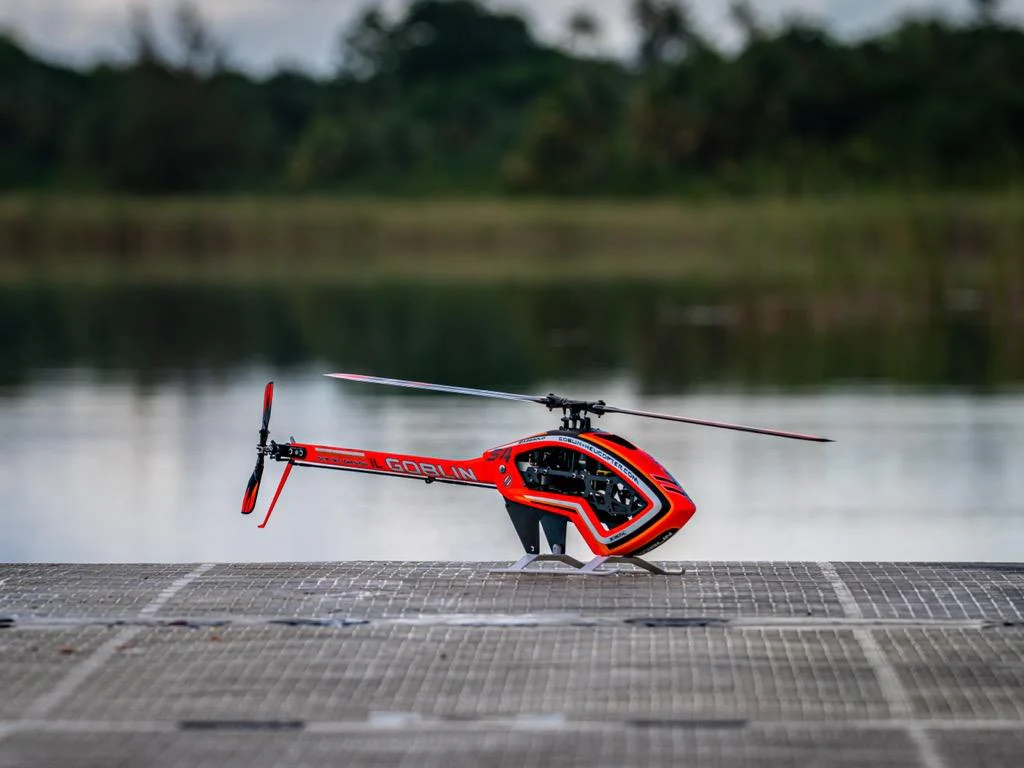

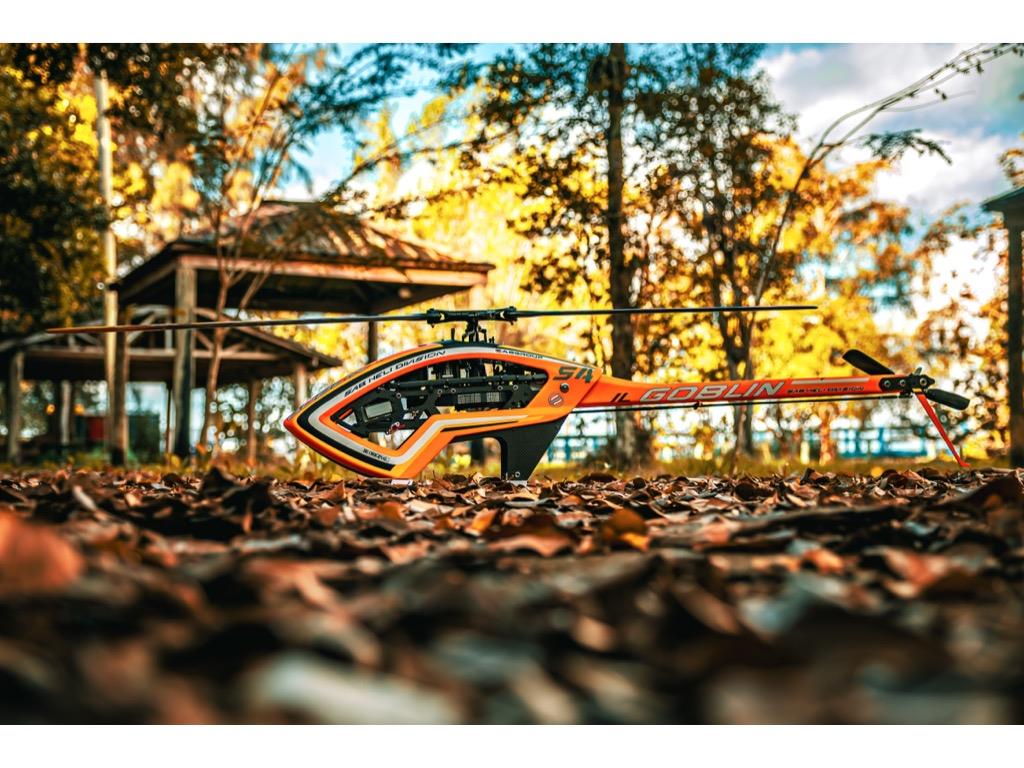

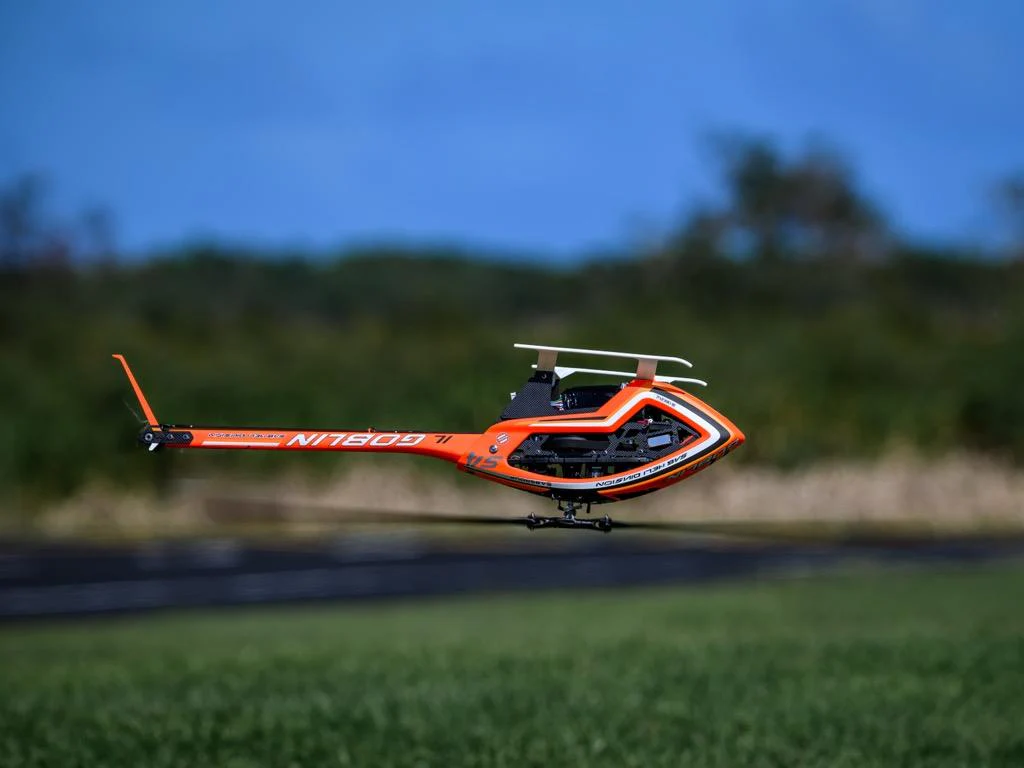

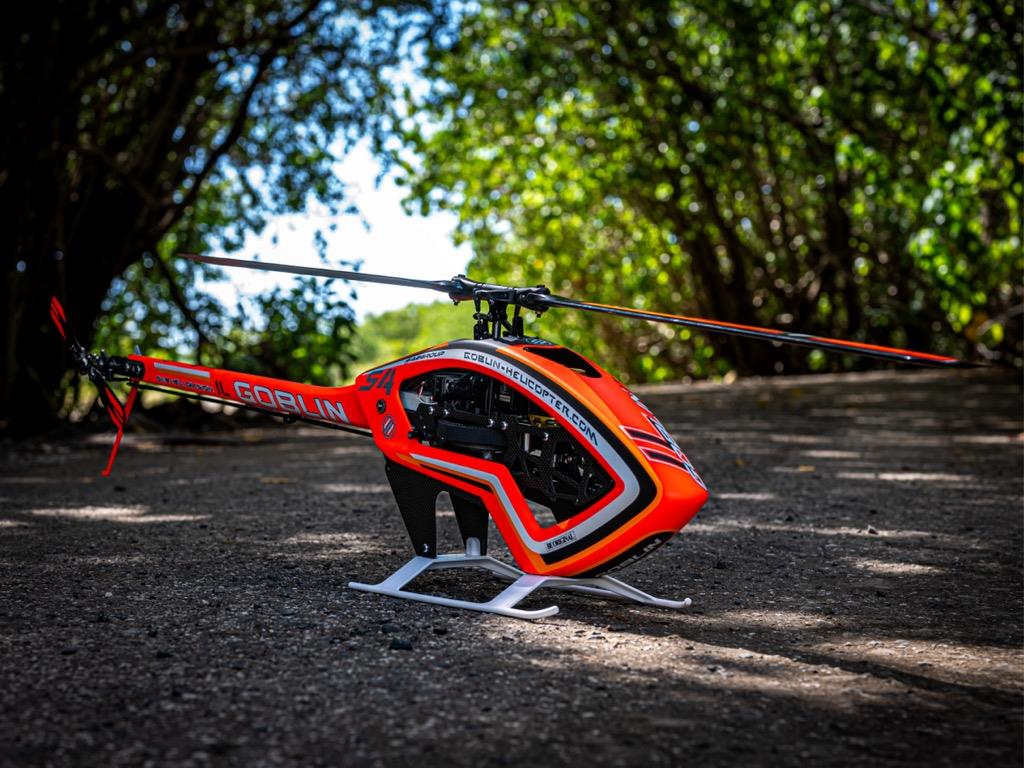

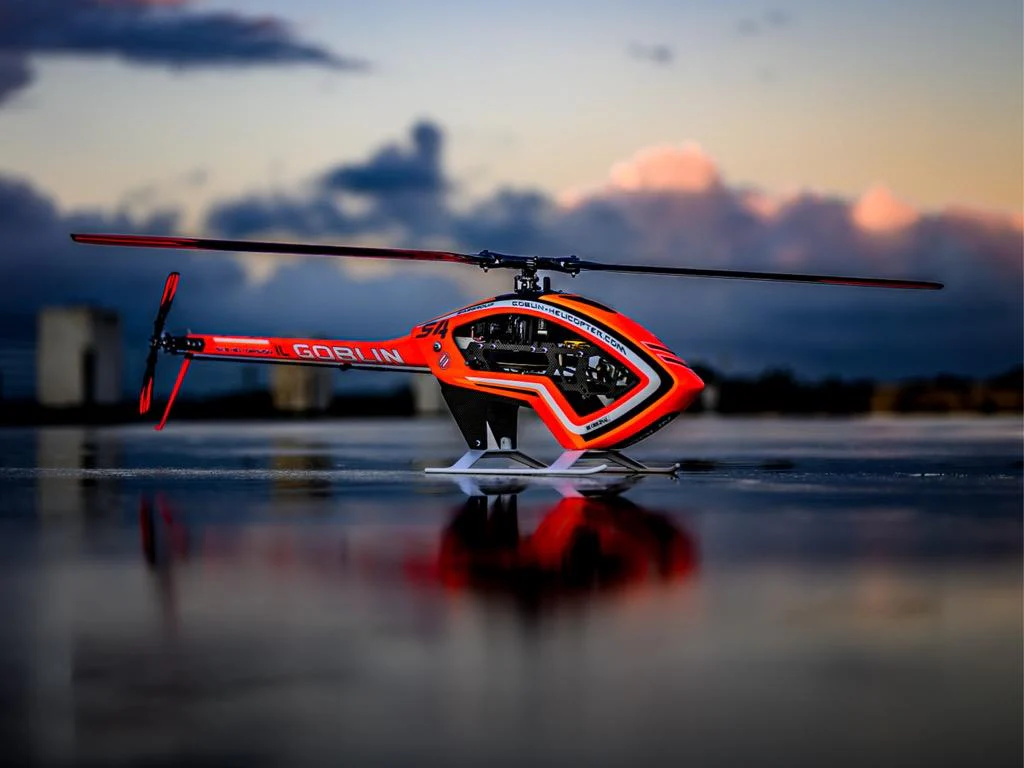

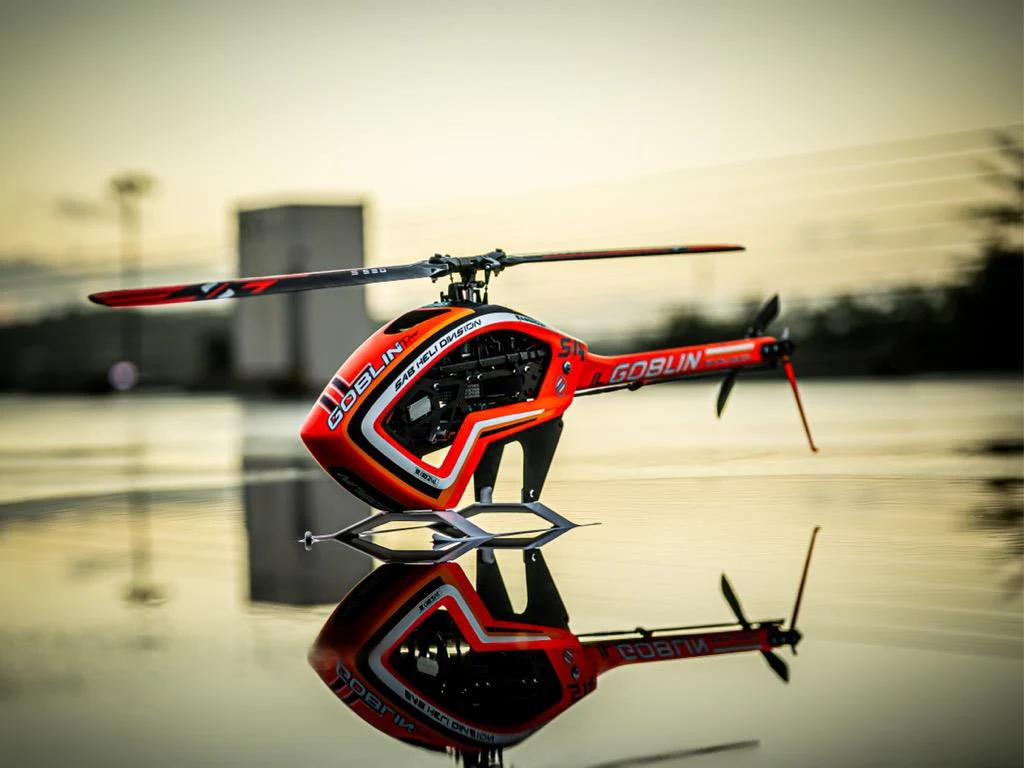

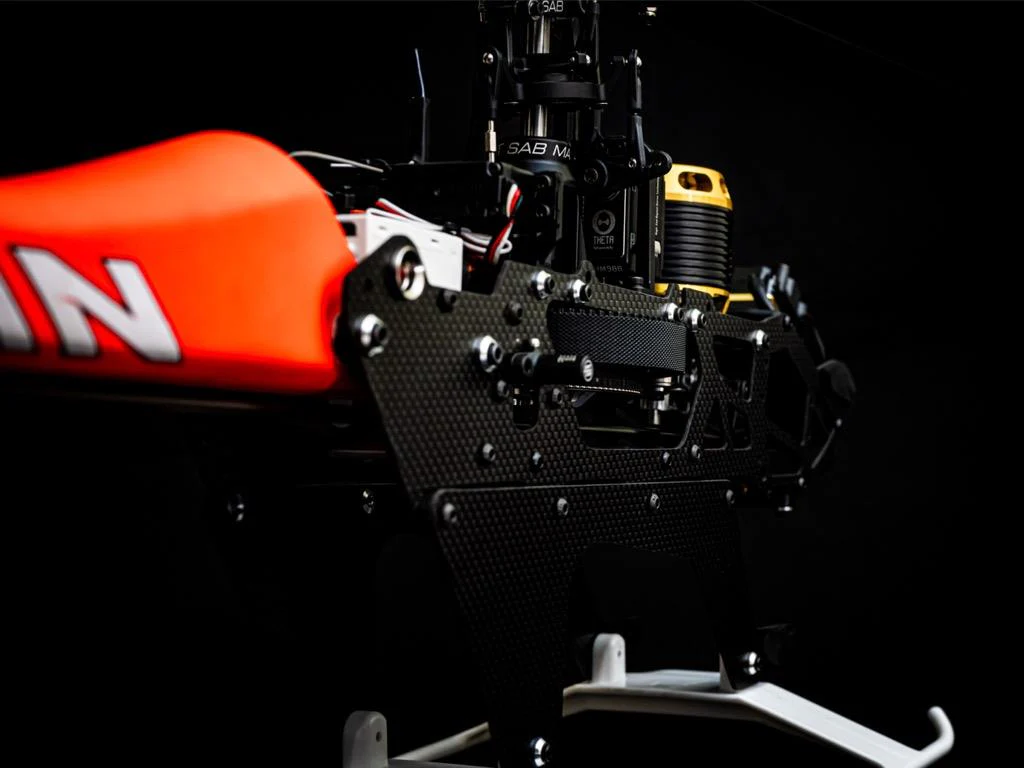

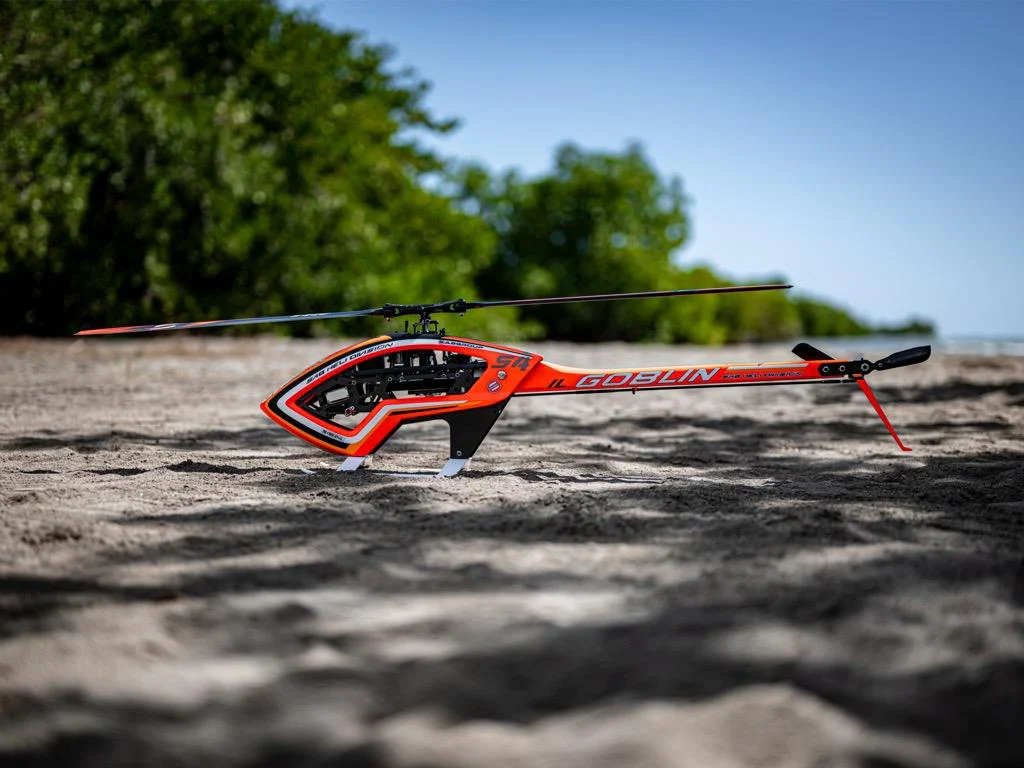

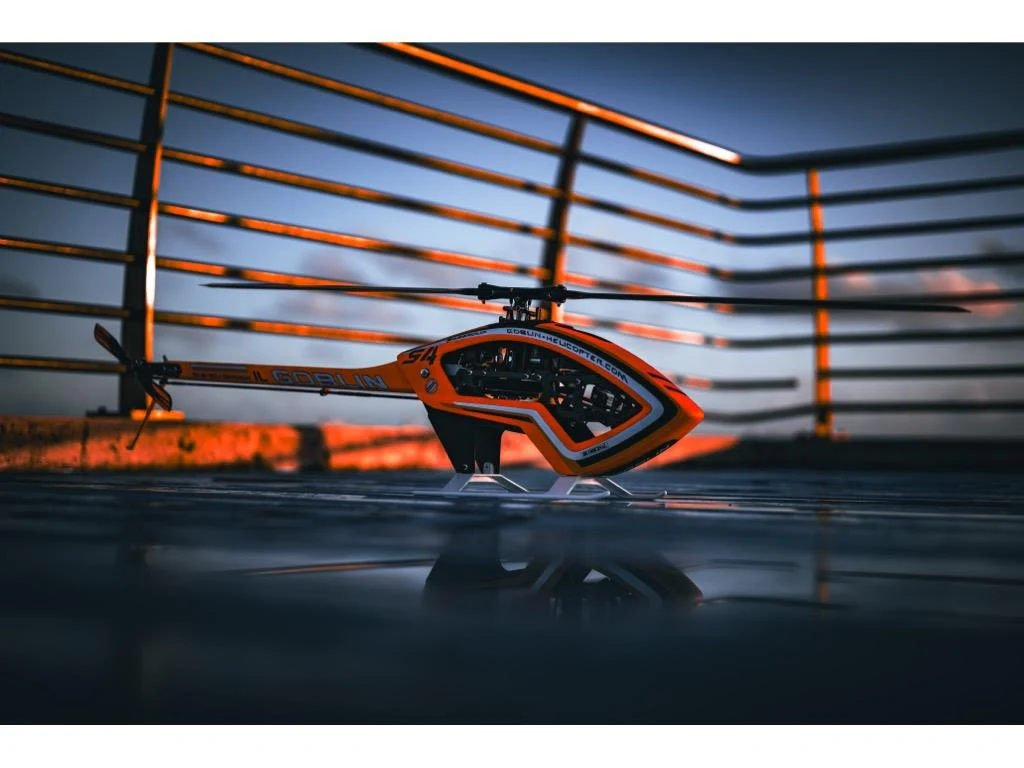

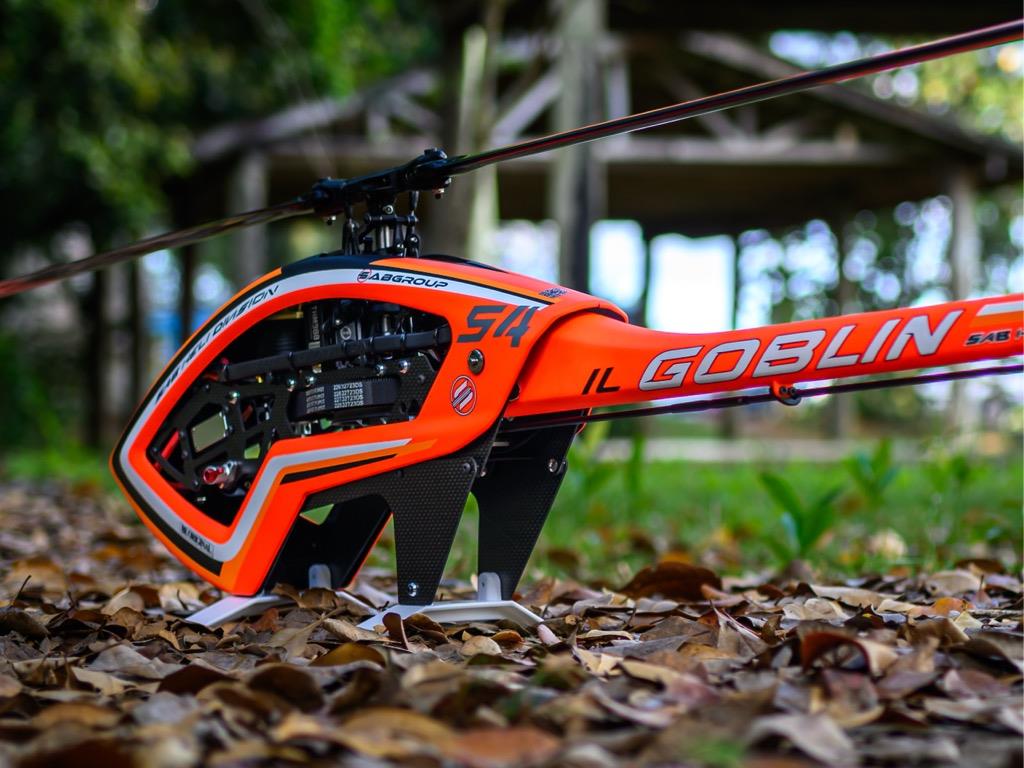

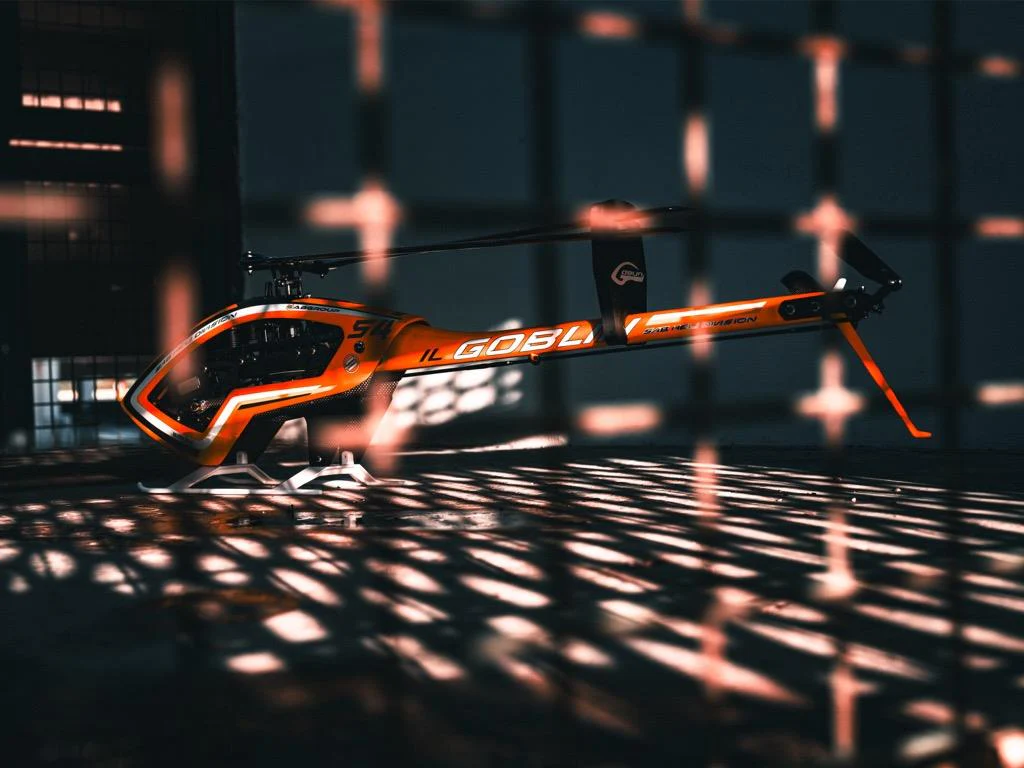

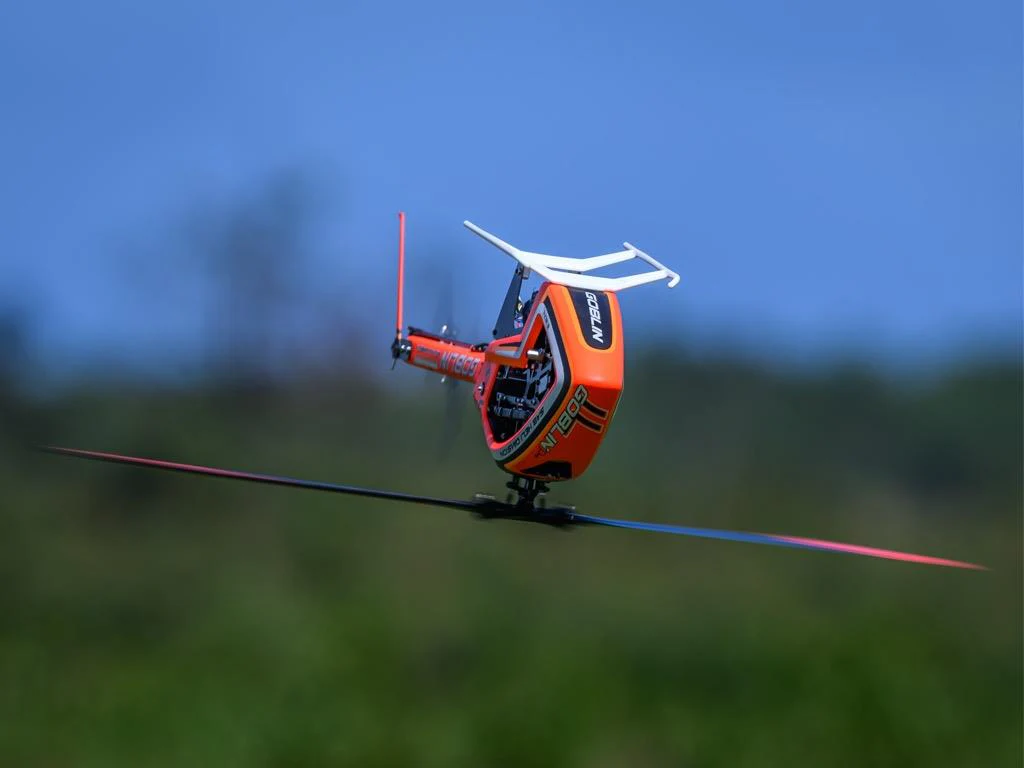

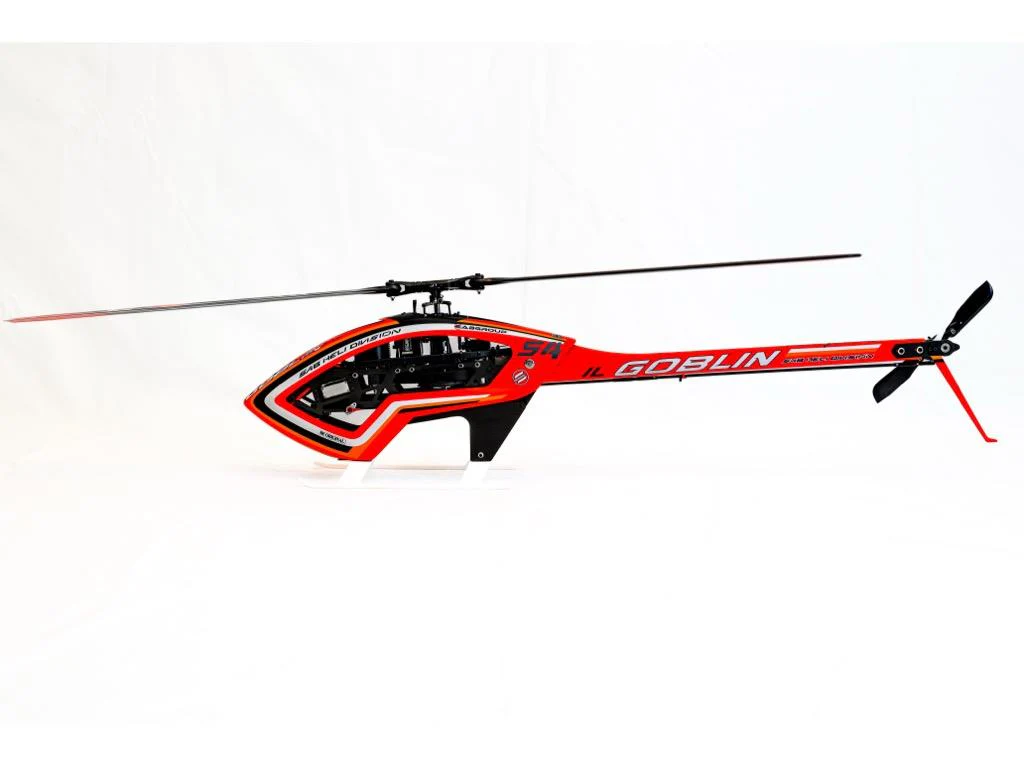

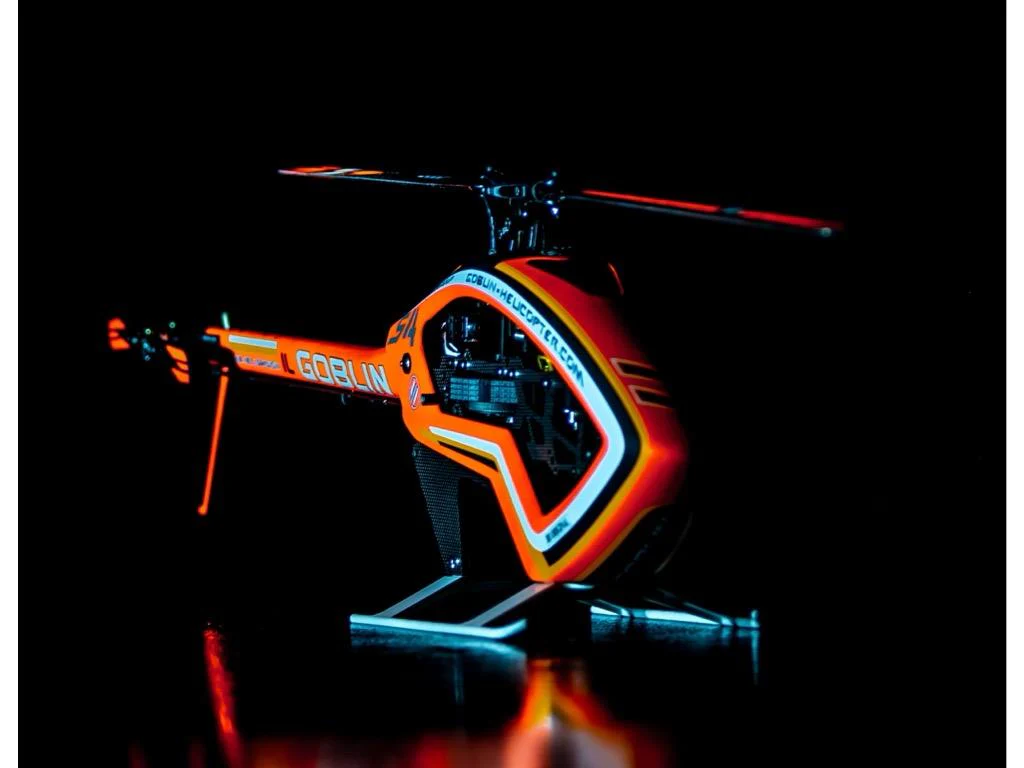

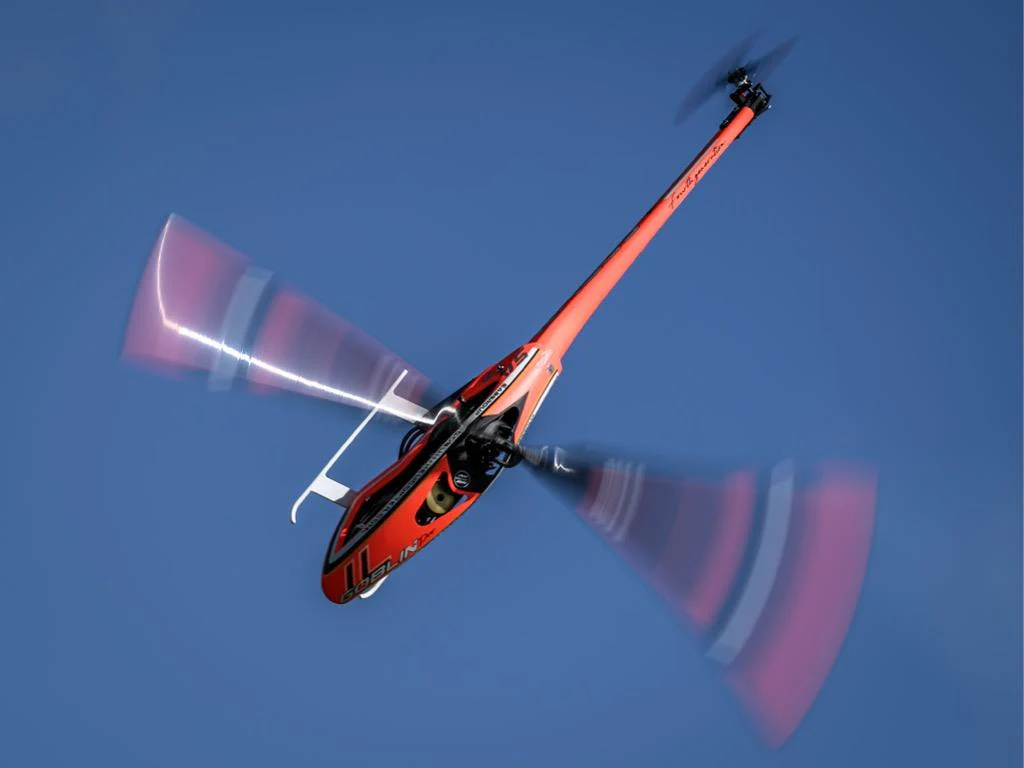

SAB ilGoblin Pro 520 Orange : SG525

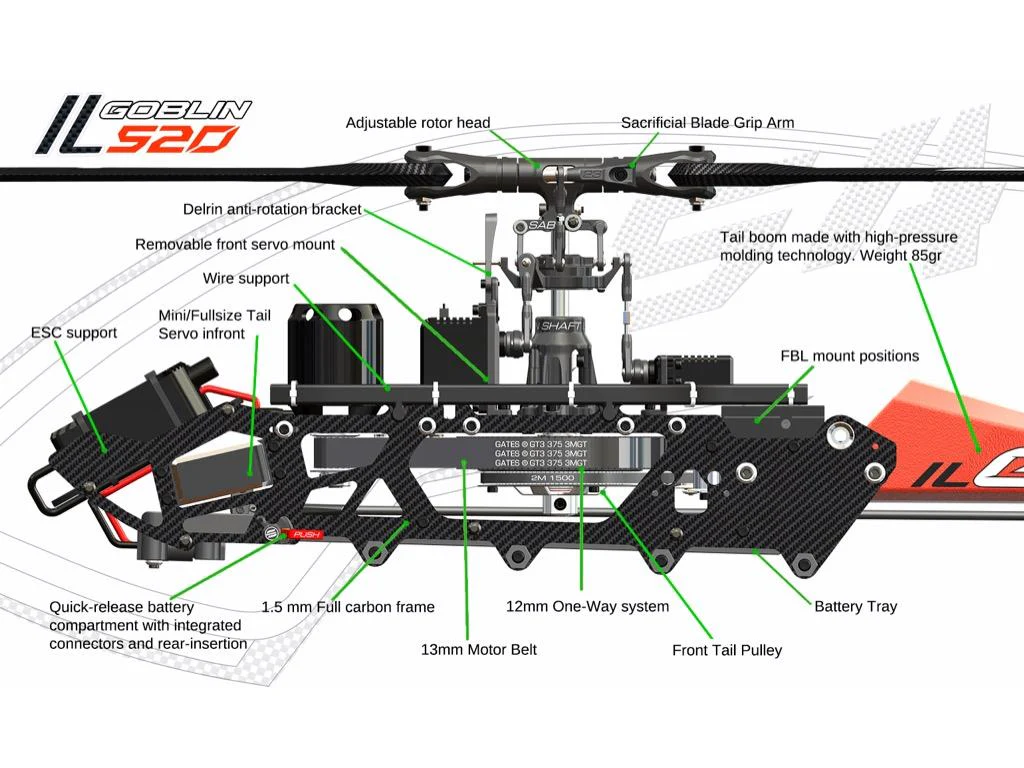

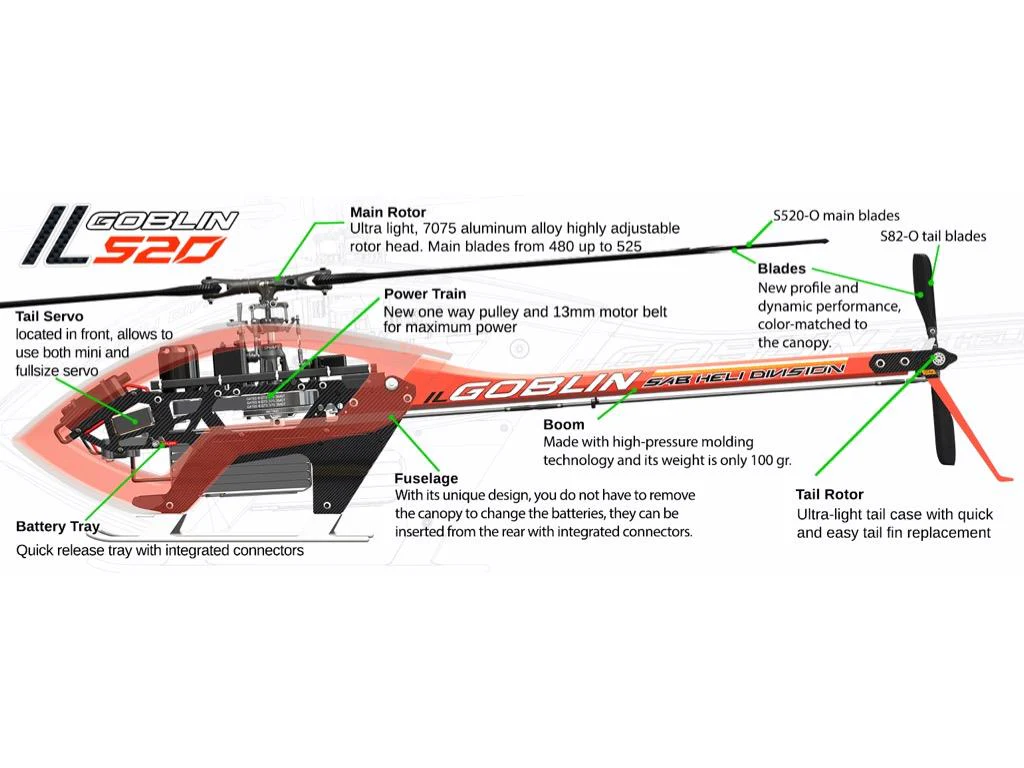

Developed based on the well proven Goblin RAW 500, the ilGoblin 520 brings many improvements to the platform:

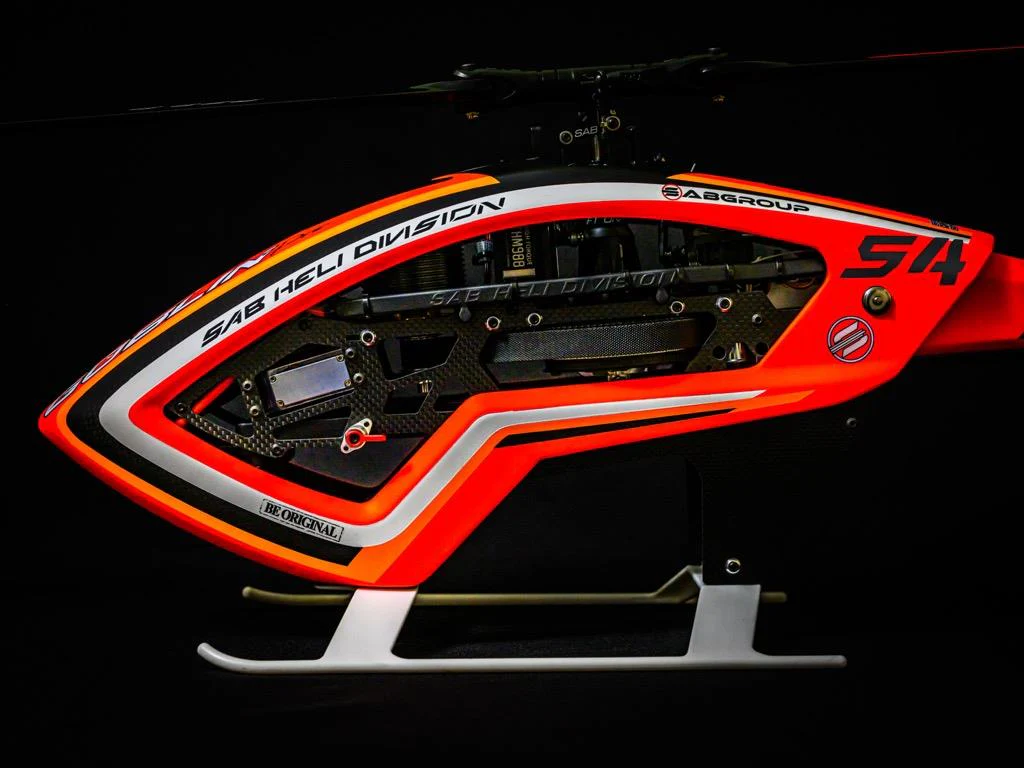

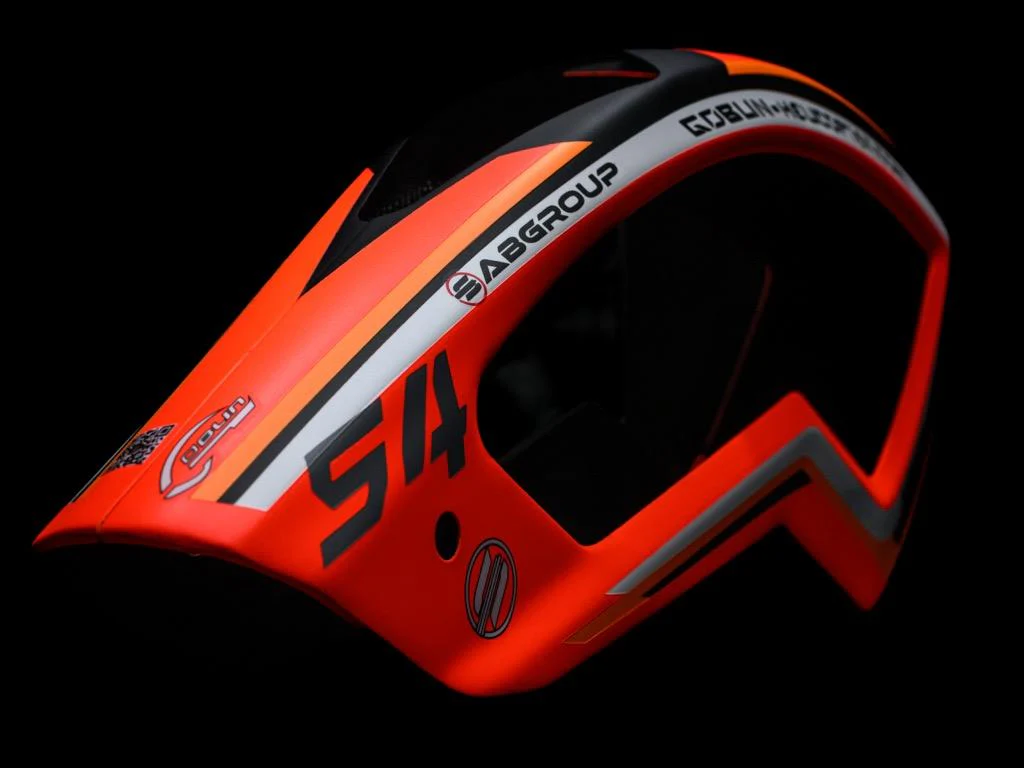

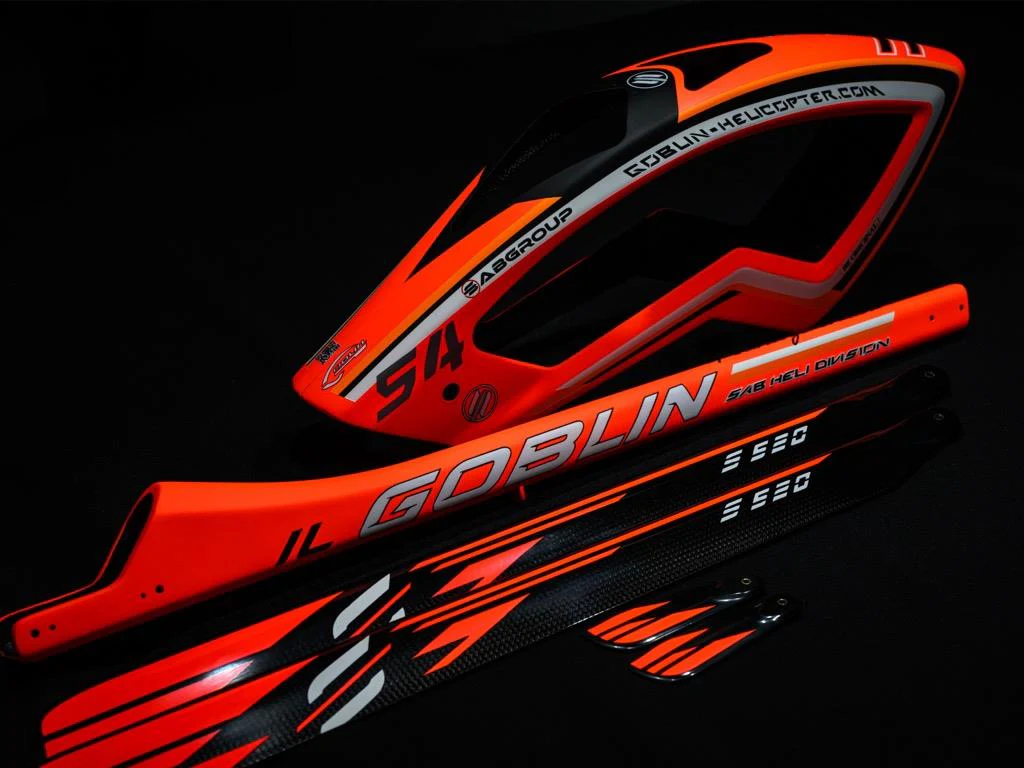

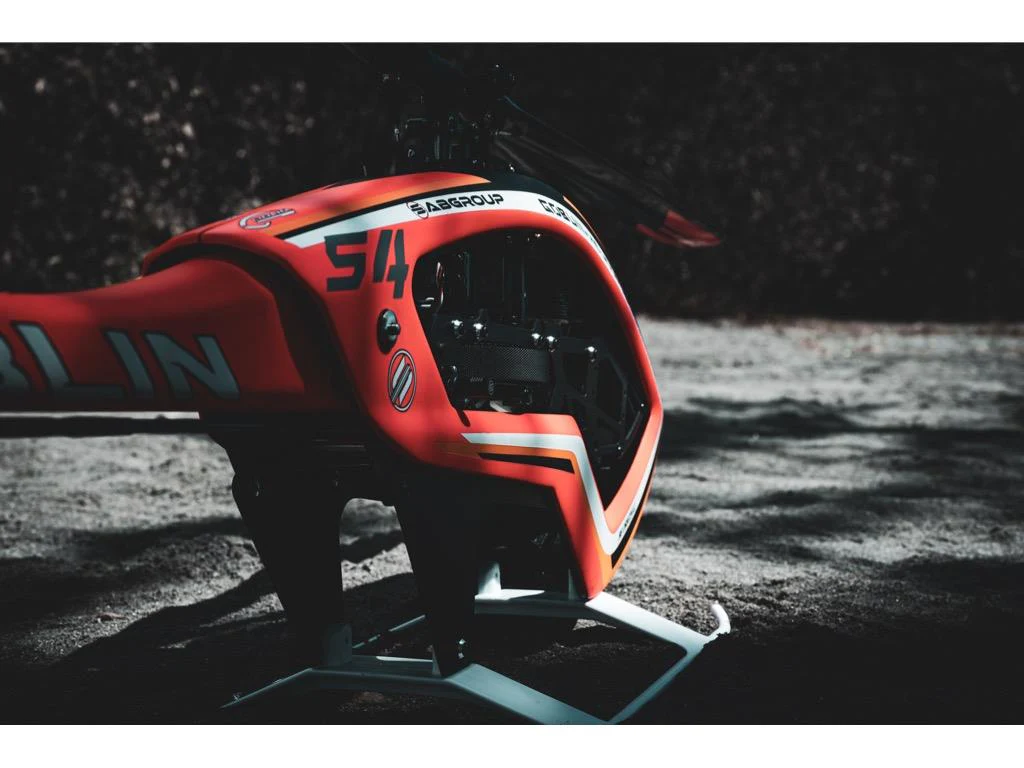

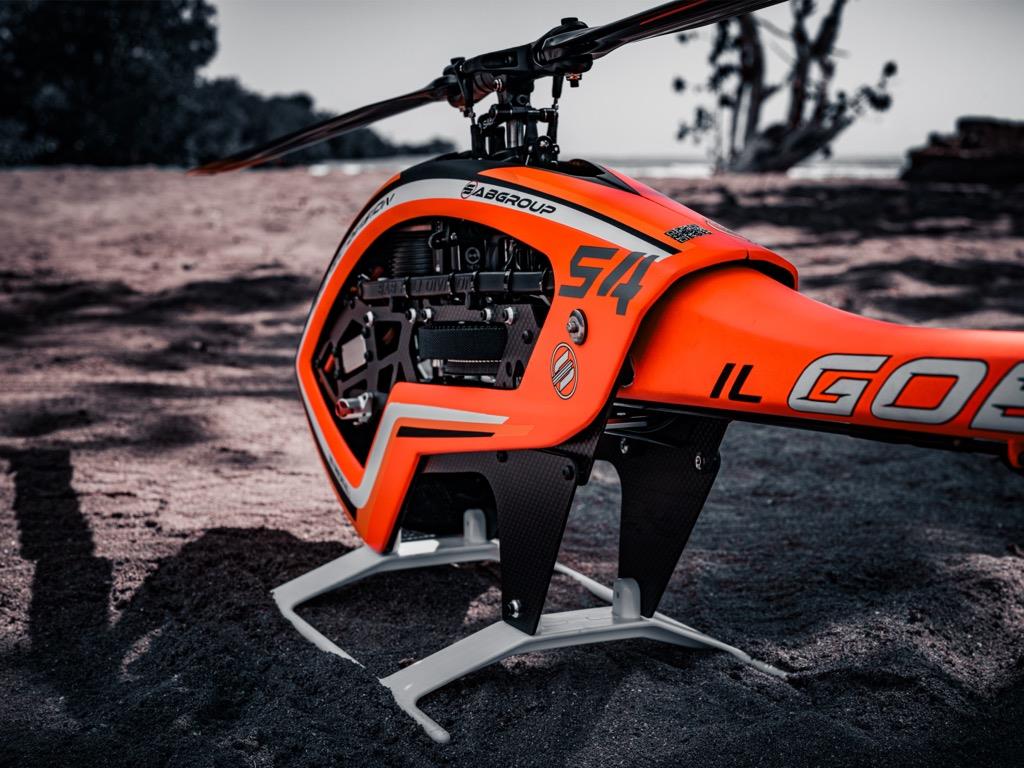

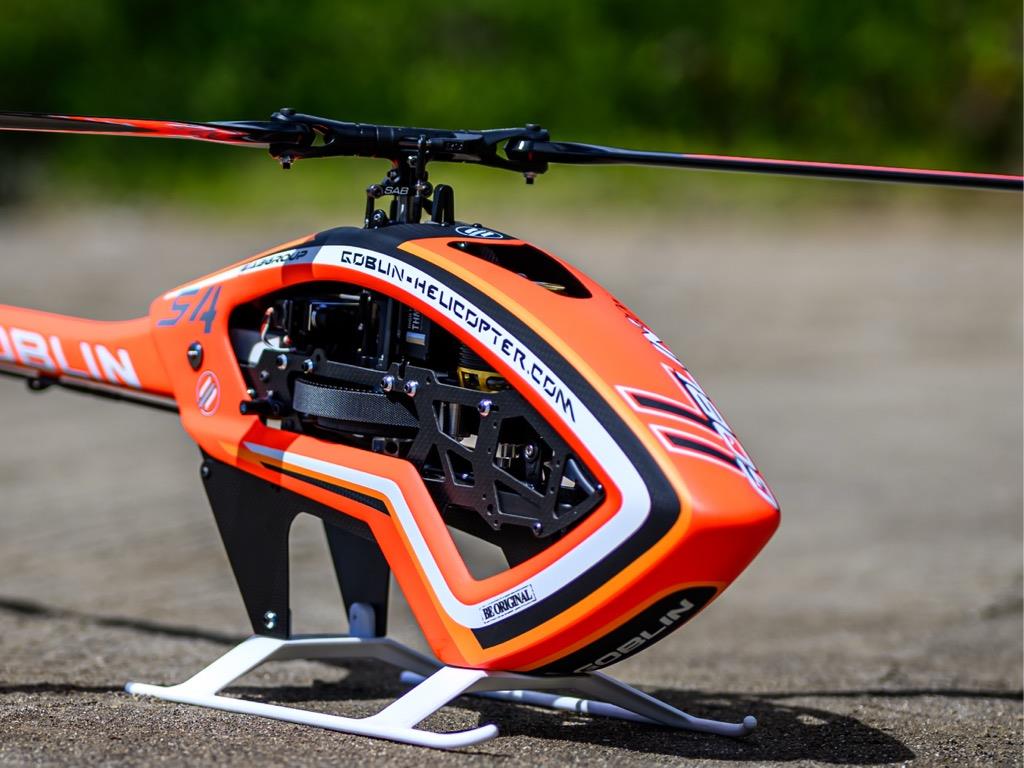

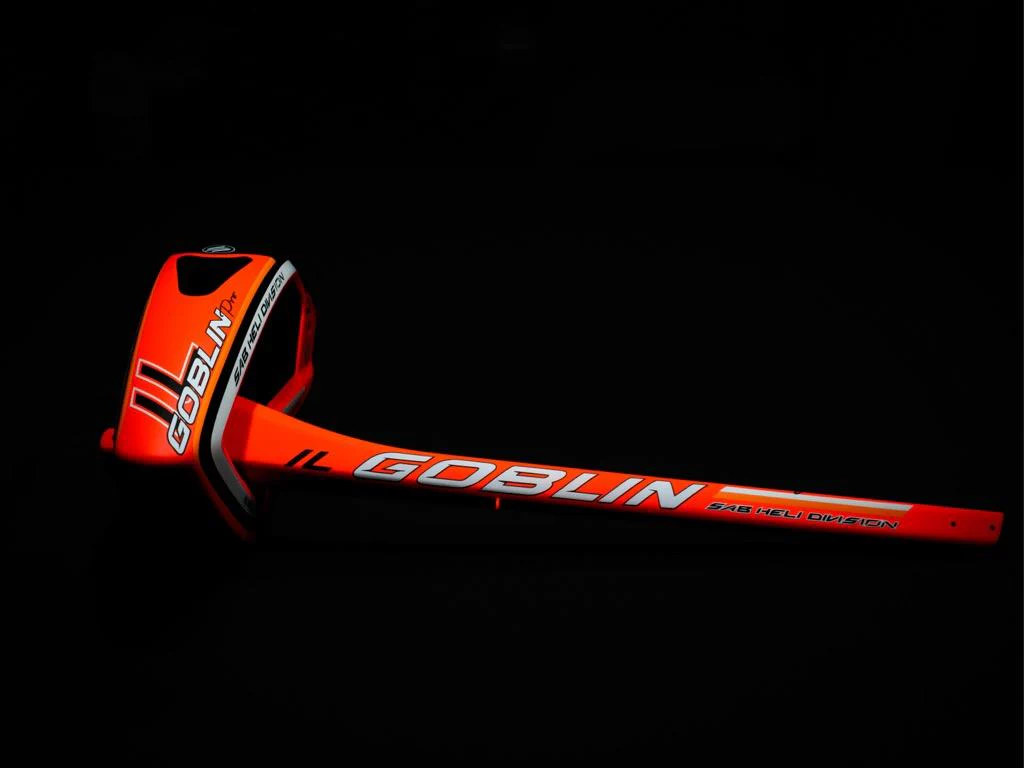

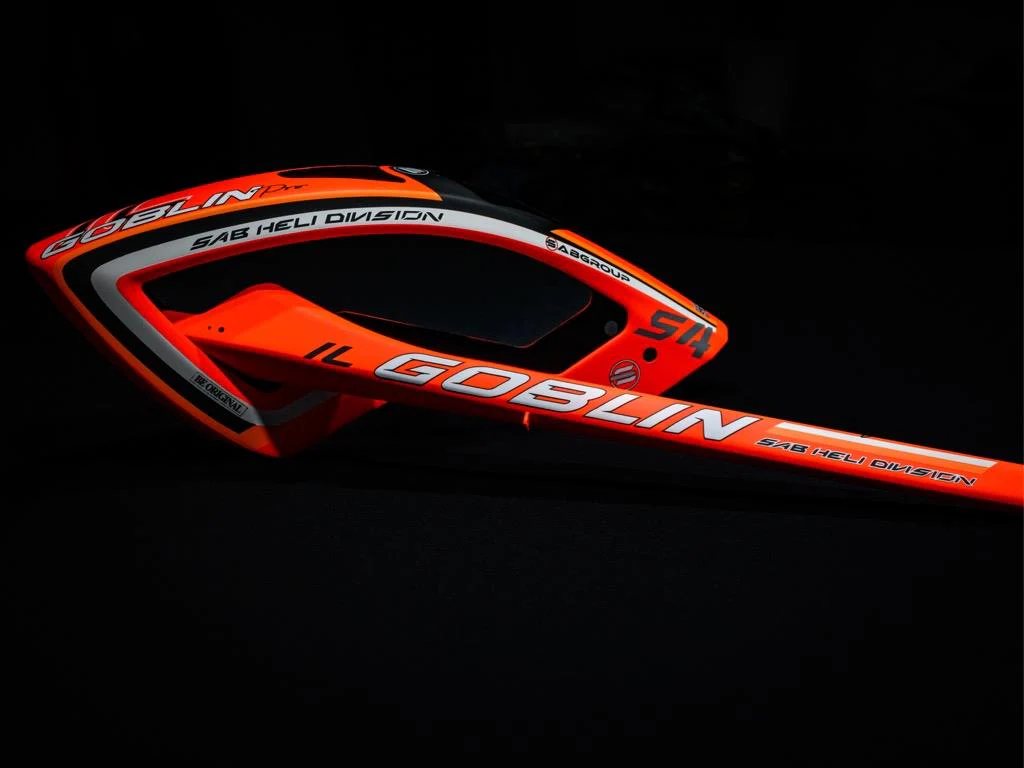

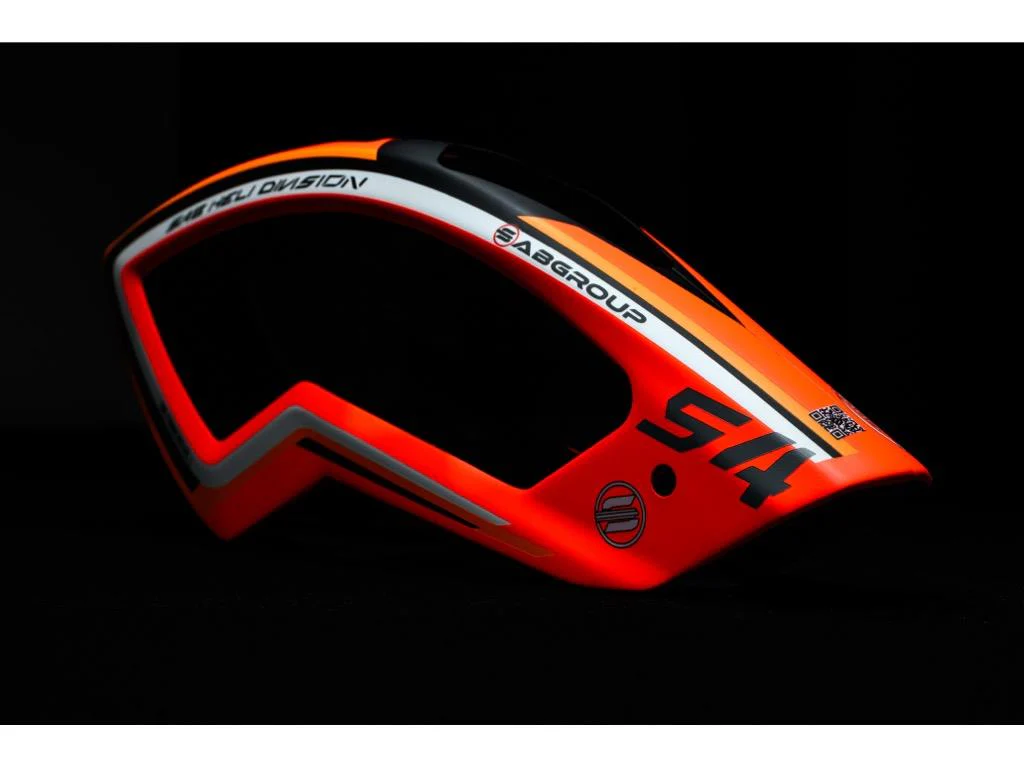

• ilGoblin Pro Canopy/Boom shape
• New, stronger one way bearing

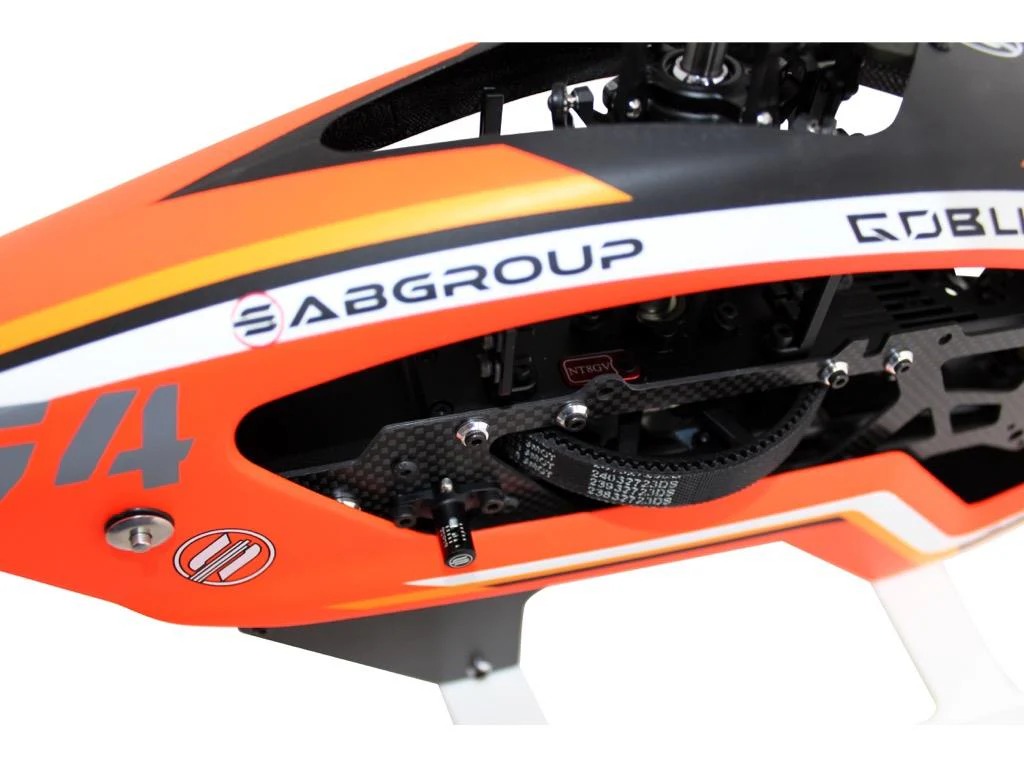

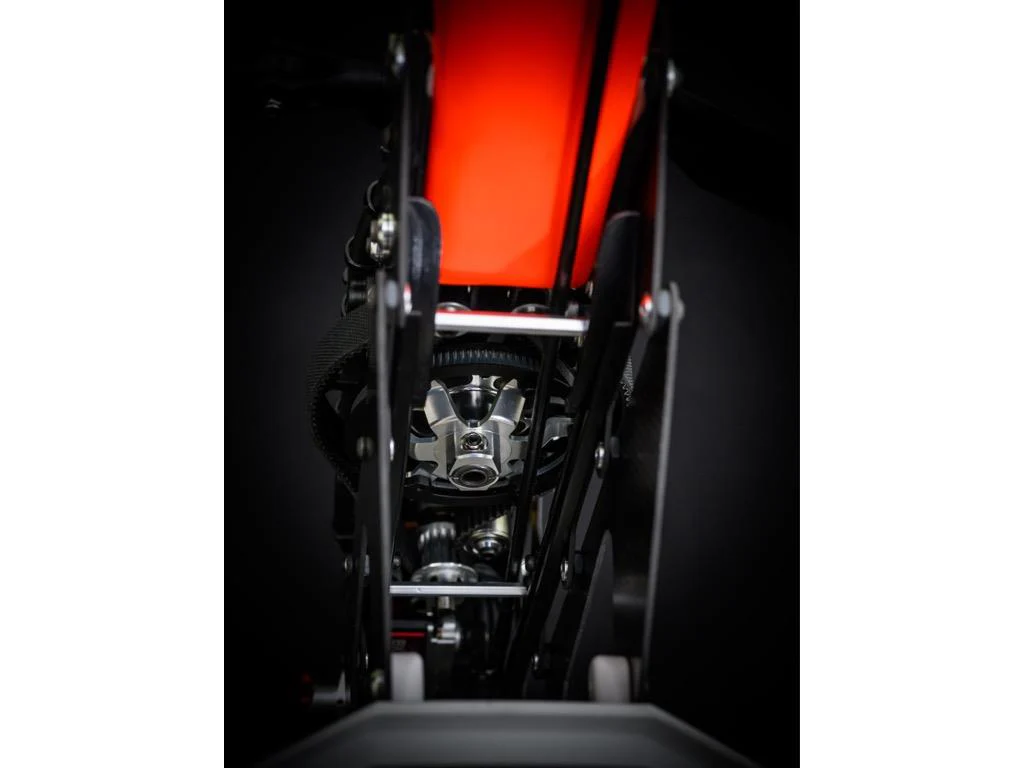

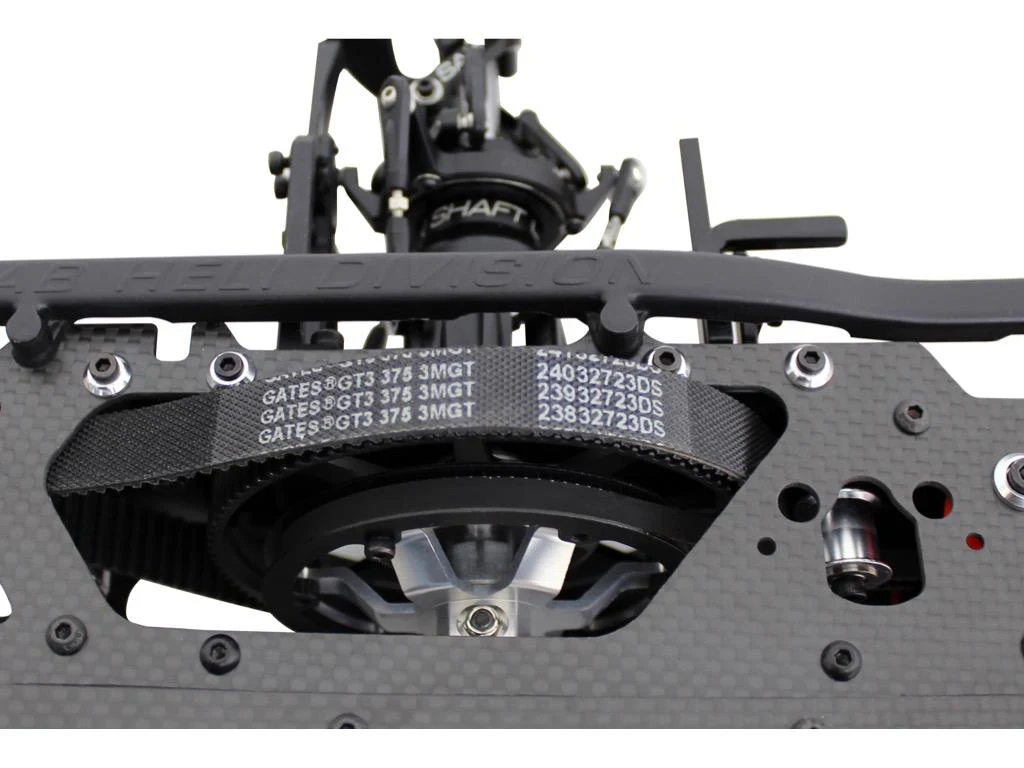

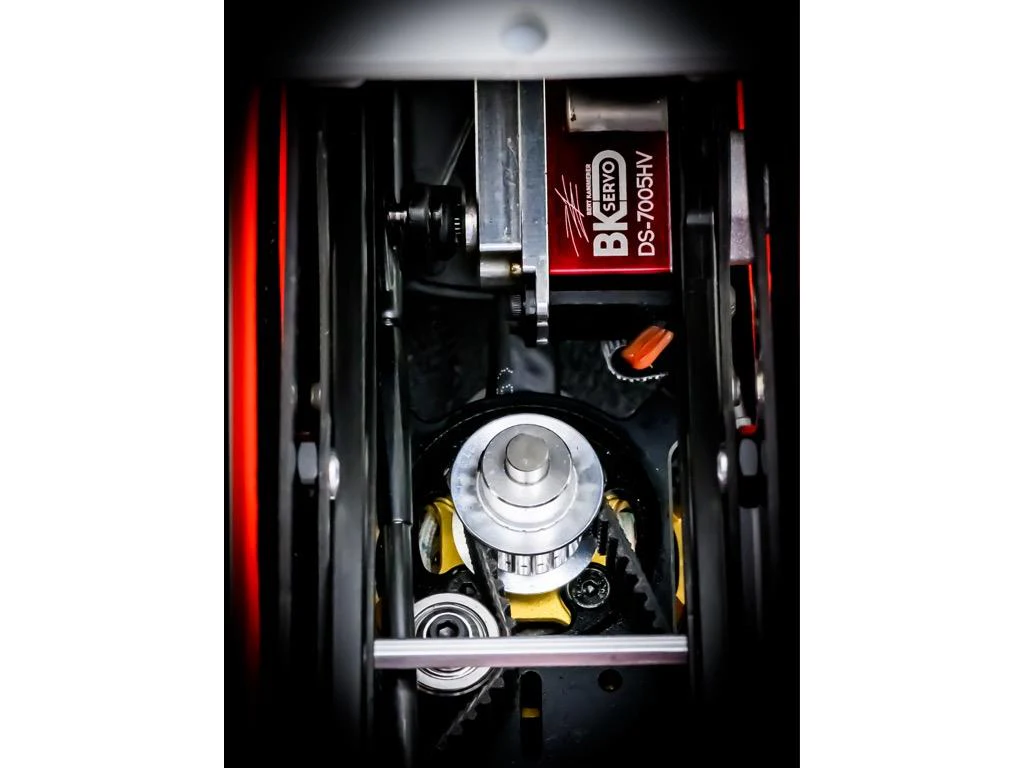

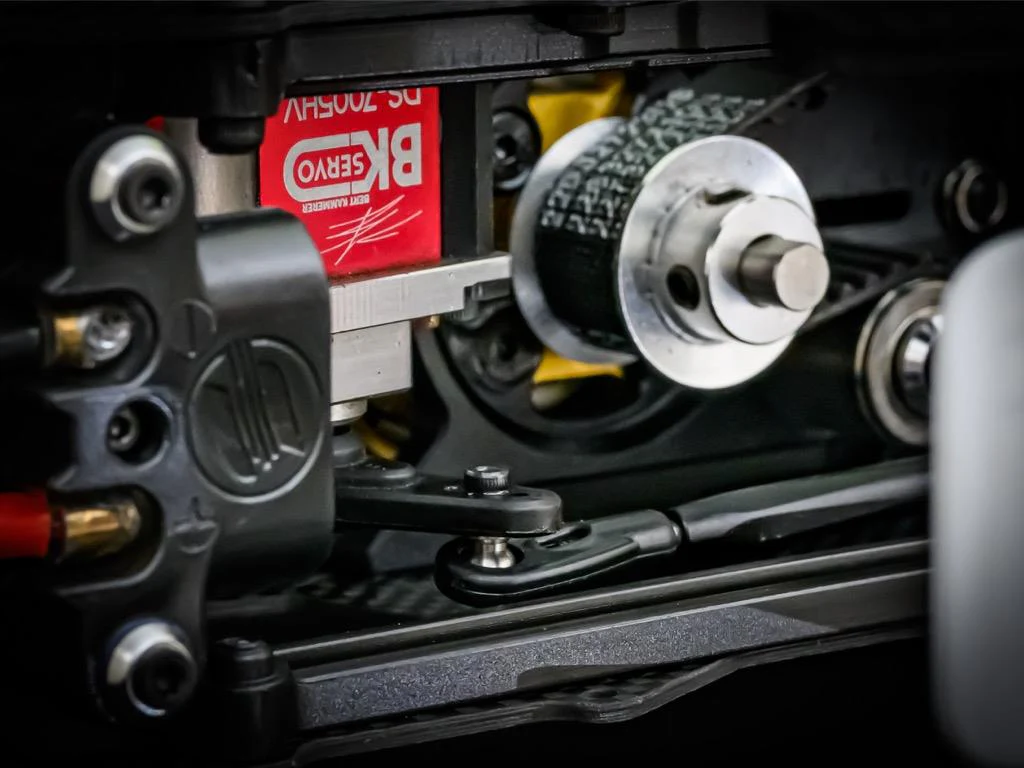

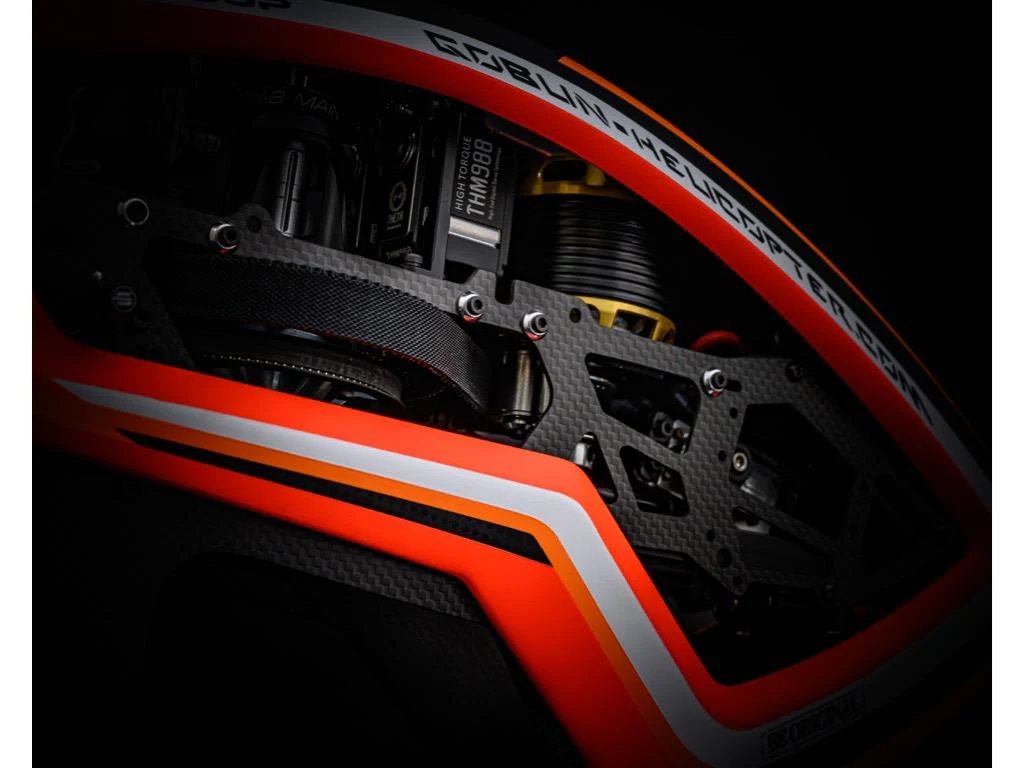

• New, stronger motor belt transmission

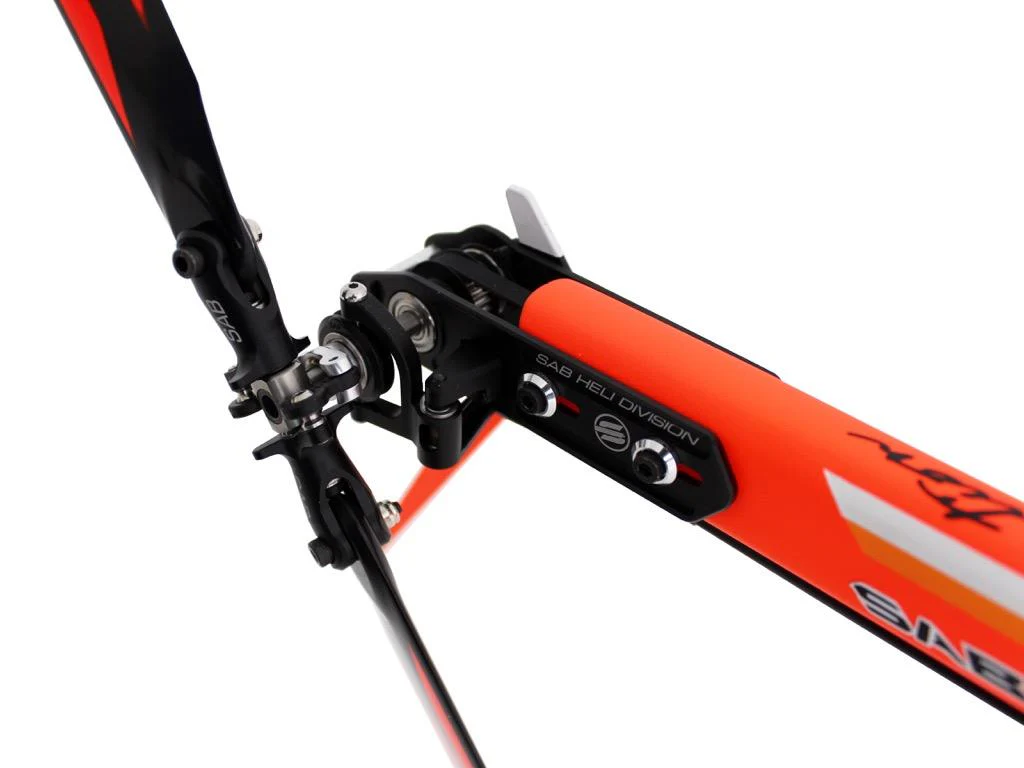

• New, smoother tail belt transmission
• Full Size tail servo compatible
• 520mm main blades/82mm tail blades

The model supports a rear-inserting battery tray, allowing you to install batteries without ever removing the canopy.

Specifications:

• AIRFRAME weight: 1894 gr (no blades, no battery, no electronics)
• Main rotor diameter: 1220 mm (with 520 mm main blades)
• Main blade length: 480 to 530mm
• Tail rotor diameter: 222 mm (with 82 mm tail blades)
• Tail blade length: 80 to 85 mm
• Cyclic Servos: Mini size 35mm
• Tail Servo: Mini size 35mm/Standard size 40mm (Standard size is default)
• Main Rotor Ratio: 1: 4.47 to 5.88 (17T Motor Pulley Includes)
• Tail Rotor Ratio: 3.88.1
• Main shaft: 8 mm, Tail shaft: 5 mm
• Moulded carbon tail boom

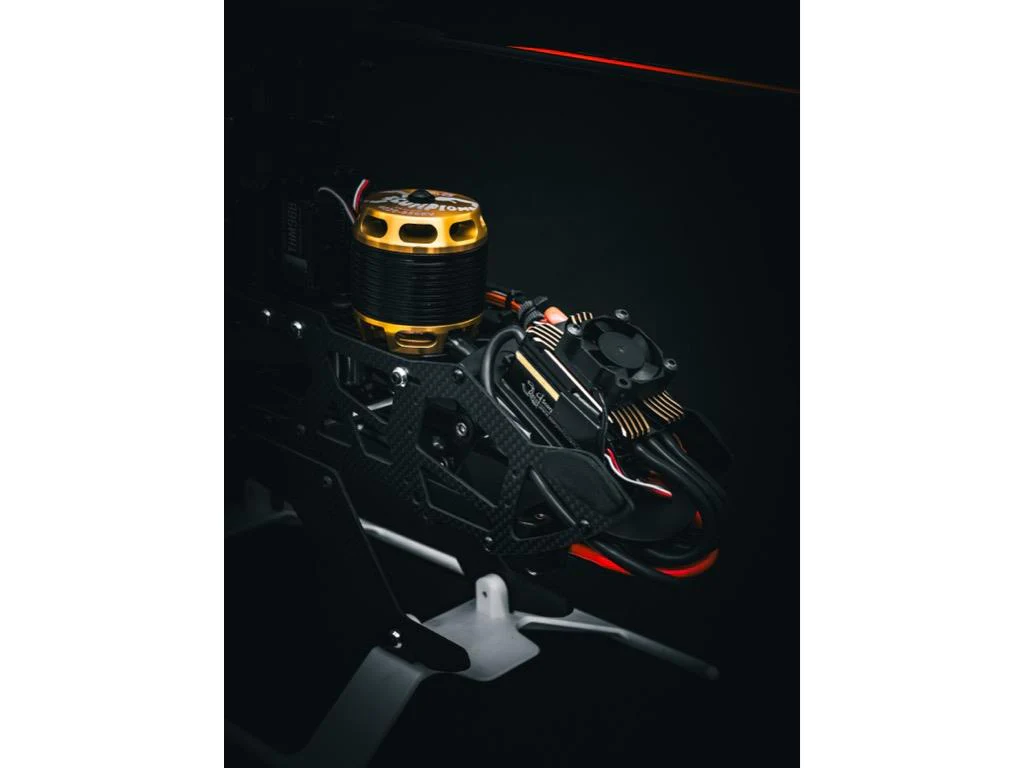

• Typical motor: 6S, 800/900 KV
• Battery room: 48x48x150mm

KIT Includes:

• 17T motor pulley (other pulley sizes available).
• 1 battery tray with integrated connectors.

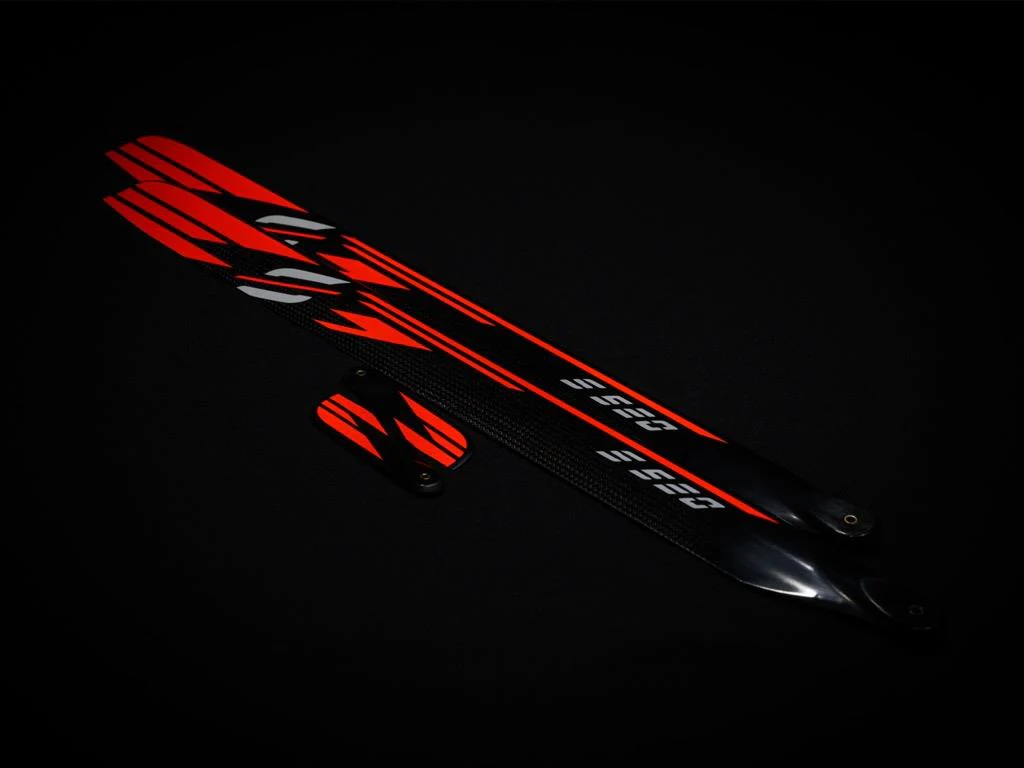

• S520 Orange (520 mm main blades).
• S82 Orange (82 mm tail blades).
