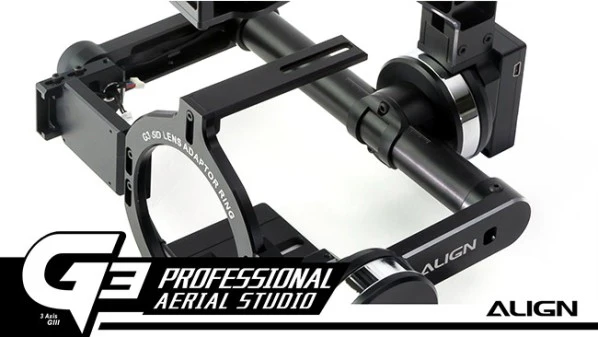

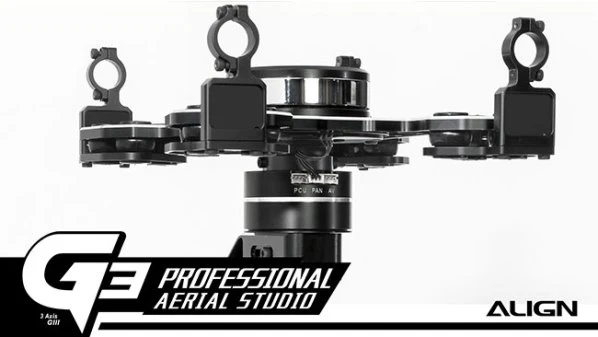

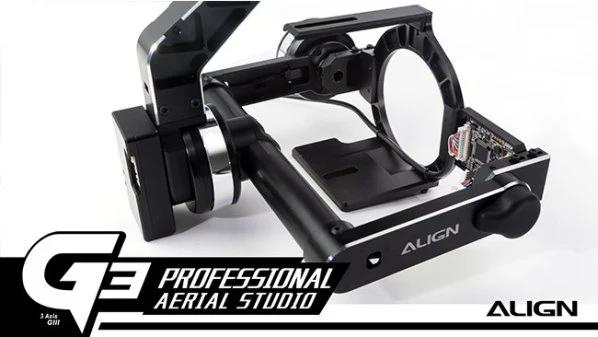

Align G3-5D gimbal features an advanced control system with superior computational power. The highly integrated design allows for quick conversion between multicopter use and hand held use. Adjustable balance point on all 3 axis for greater camera compatibility, while the high precision brushless motors provide excellent agility and stability. Built in HDMI/AV converter and RC receiver connectivity. Supports programmability through PC interface, or connectivity to iOS/Android smartphones through Bluetooth. Equipped with automatic calibration function during power up. Supports single RC transmitter mode through APS-M, or independent remote control of the gimbal through a dedicated RC transmitter, as well as remote shutter trigger and video start/stop control to capture the optimal footage through precise framing.

G3-5D Gimbal Specification:

Weight: Approx. 1250g

Gimbal Controller Specification:

Input Voltage: DC 12V(3S)

Current Draw: 500mA@12V

Maximum Control Range: PAN 360°, ROLL ±30°, TILT 90°

Maximum Control Rotation Rate: PAN 60°/s, ROLL 60°/s, TILT 60°/s

Temperature Range: -20~80°C

Voltage Output:5V / 0.5A

Dimension: 59.5x35x16.4mm

HDMI-AV(Digital to Analog) Converter Specification

Input Voltage: DC 12V(3S)

Power Consumption: 1800mW (12V/150mA)

Compatible Cameras: G3-5D: Canon 5D or equivalent.

Supported Output Format: 1800mW/ 50HZ/60HZ;720P/ 50HZ/60HZ;576P/ 50HZ/60HZ;, 480P/ 50HZ/60HZ;1080I/ 50HZ/60HZ;576I/ 50HZ/60HZ;480I/ 50HZ/60HZ

Video Output Format: NTSC(480I)

Signal Output Resistance: 75Ω

Temperature Range: -20~65°C (-4 ~ 149°F)

Dimension: 42x32x7mm
